Waveshare Industrial 8-Ch Analog Acquisition Module, 12-Bit High-Precision, Supports Voltage and Current Acquisition, DC 7~36V Wide Voltage Power Supply, 8-ch Current Mode, 0~20mA
4.5 (21 items)
Limited Time SaleUntil the end
06
26
08
US$20.39 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$13.60
Product details
| Management number | 209087821 | Release Date | 2026/03/29 | List Price | US$13.60 | Model Number | 209087821 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

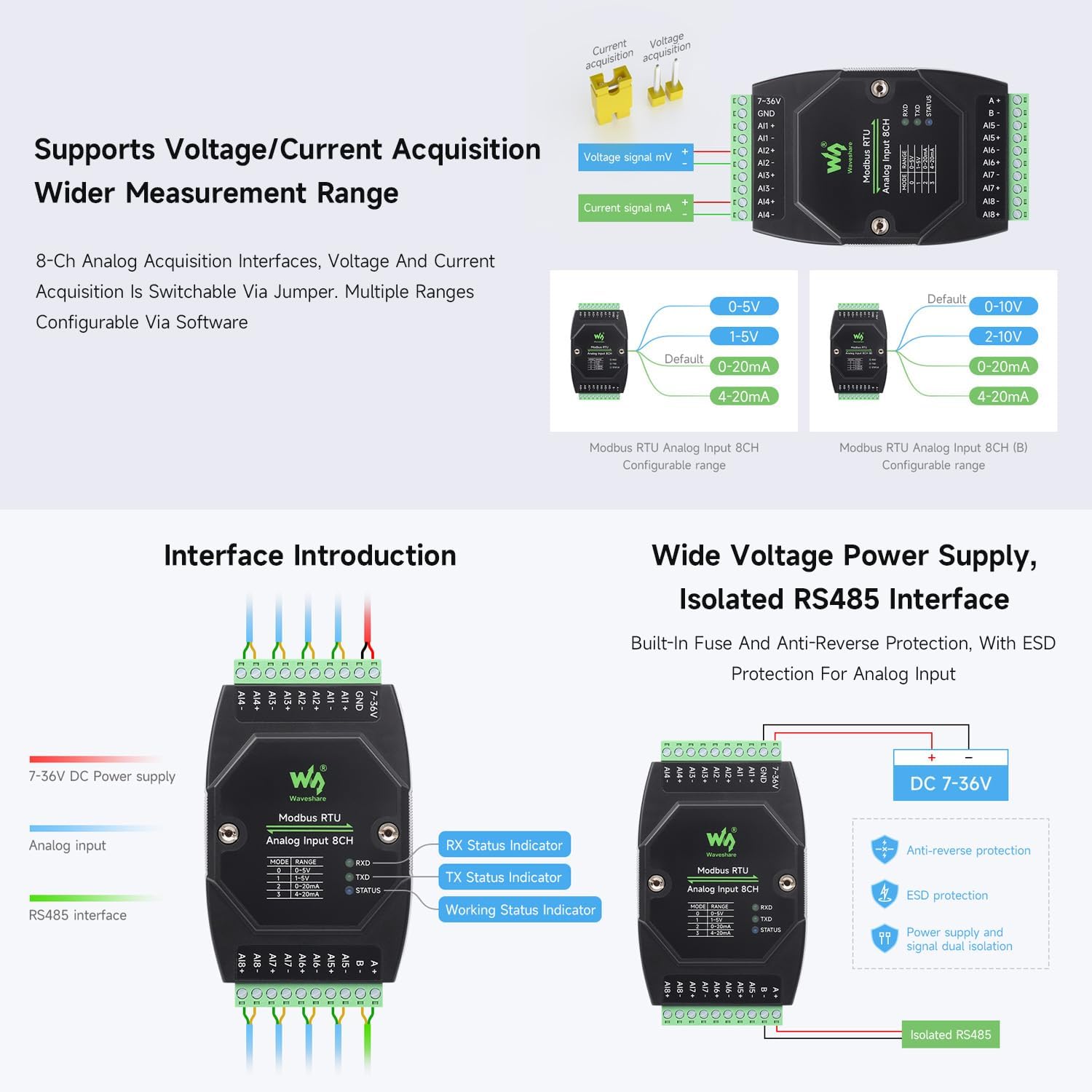

- 8-ch current mode, 0~20mA
- Configurable device address (1~255), multi devices can be cascaded on RS485 bus. bOnboard voltage regulator, supports 7~36V wide range power supply. Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard unibody magnetical isolation, allows signal isolation, high reliability, strong anti-interference. Onboard resettable fuse and TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, provides over-current/over-voltage proof, lightningproof & anti-electrostatic
- Supports 12-bit high-precision acquisition with multiple range input modes, supports single-ended/differential input, supports voltage and current simultaneous acquisition. Adopts high-precision resistors and zero-drift high-precision operational amplifier for more accurate data acquisition
- Built-in oversampling digital filtering algorithm, onboard watchdog, for stable output without crashing. Rail-mount case design, support stacking combination, easy to install and safer to use. 3x LEDs for indicating the MCU status and signal transceiving status
| Brand | waveshare |
|---|---|
| Color | Black |
| Amperage | 20 Milliamps |
| Form Factor | rectangular |
| Item Weight | 0.14 Kilograms |
| Manufacturer | Waveshare |
| Model Number | Modbus RTU Analog Output 8CH (B) |
| Input Voltage | 36 Volts (DC) |
| Output Current | 20 Milliamps |
| Output Voltage | 36 Volts |
| Mfr Part Number | Modbus RTU Analog Input 8CH |
| Specification Met | UL, CE, FCC, RoHS |
| Enclosure Material | Metal |
| Connector Type Used on Cable | 3.5 mm Jack |
