TUB-BAW-S LTUBE1184 Horizontal Drain Pot with Stainless Steel Grate Grey

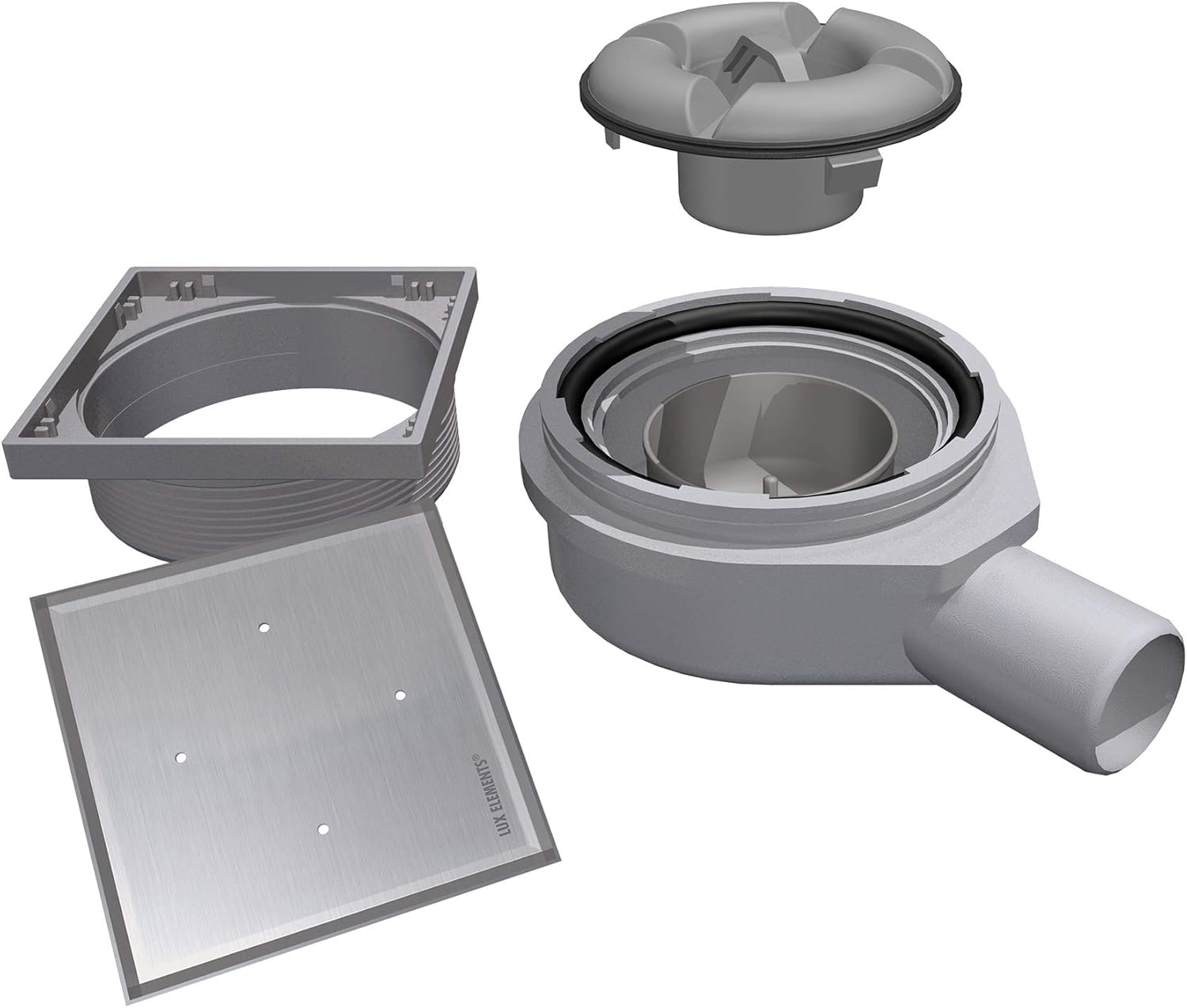

Horizontal drain pot with stainless steel grate Floor drain socket DN 50 horizontal, with odour trap, includes ABS rust holder and stainless steel grate Universal height adjustment to tile thickness. Load class K3. Suitable for all Lux Elements shower floors with spot drainage. Drain capacity according to DIN EN 1253: 1.0 l/s (60 l/min). Frame outer dimensions: 13 x 13 cm. Cover 12 x 12 cm. Top covering (tiles and adhesive): min. 5 mm. Optional accessories such as hair strainer or waterless odour trap available Further information on the areas of application and assembly can be found in the brochure "Professional bathroom extension" and the processing instructions (English language not guaranteed).

• Horizontal drain pot with stainless steel grate including odour trap for all Lux Elements shower floors with point drain
• High drain capacity (1.0 l/s)
• Universal height adjustment to tile thickness
• Optional accessories such as hair strainer or waterless odour trap available
• Suitable for all factory sealed Lux Elements shower floors with point drain
