Thickness Gauge Digital Ultrasonic Thickness Meter Range 0.8-350mm, 0.03-13.8inch Handheld Ultrasonic Thickness Tester Gauge AMA006E

Specifications:1. Measuring Range: 0.8~350mm 0.03~13.8" (45# steel)2. Resolution: 0.8~100mm: 0.01mm; 100-350mm: 0.1mm3. Accuracy: 0.8~10mm: ±0.05mm; 10~350mm: ±0.5%4. Sound Velocity Range: 1000~9999m/s5. Probe: 5MHz φ10mm double-crystal probe6. Display: 240 x 160 dot matrix LCD7. Unit: mm/inch8. Host Size: 142*72*28mm9. Weight: About 230g10. Operation Temperature Range: -10~50℃, 0~85%RH11. Storage Temperature Range: -10~60℃, 0~85%RH

• This ultrasonic thickness gauge adopts the principle of the reflected plus ultrasonic measurement, which is specialized in thickness measurement of materials that can transmit ultrasonic waves such as metals (e.g. steel, aluminum, copper, etc.), plastics, ceramics, glass, etc.
• The AMA006E thickness gauge instrument employs a professional design of time-chip with a resolution of up to 0.01mm.
• Can measure a variety of materials like steel, aluminum, copper, glass, including iron, plastics, toughened tile, brass, gold, silver, zinc, water (at 20°C) and other materials.

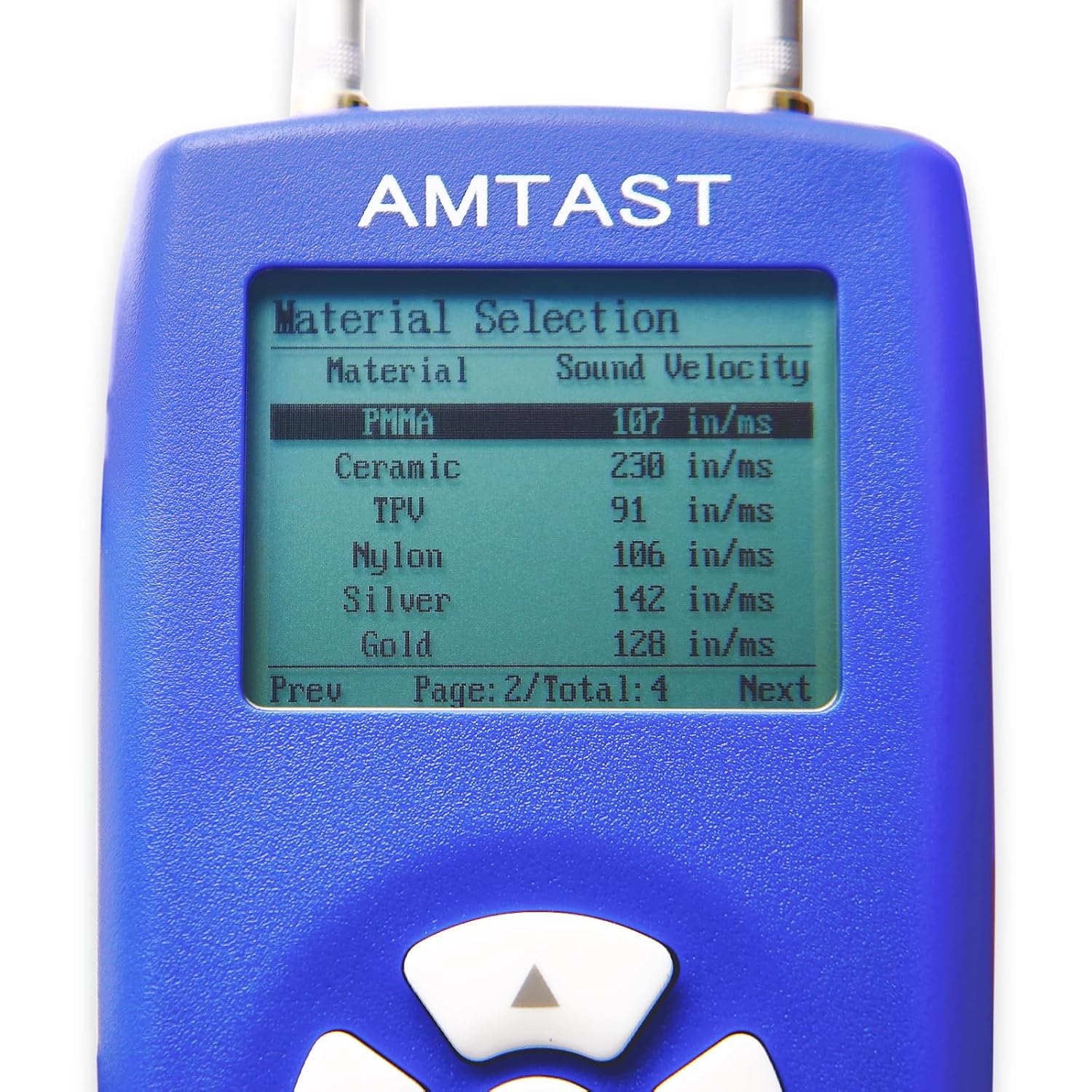

• Easy to use. According to the user’s manual and interface buttons, it is easy to measure thickness, adjust ultrasonic velocity or select unit (mm or inch).
• Designed according to European Union’s CE safety norms. The digital ultrasonic thickness meter is designed according to laboratory standards.
