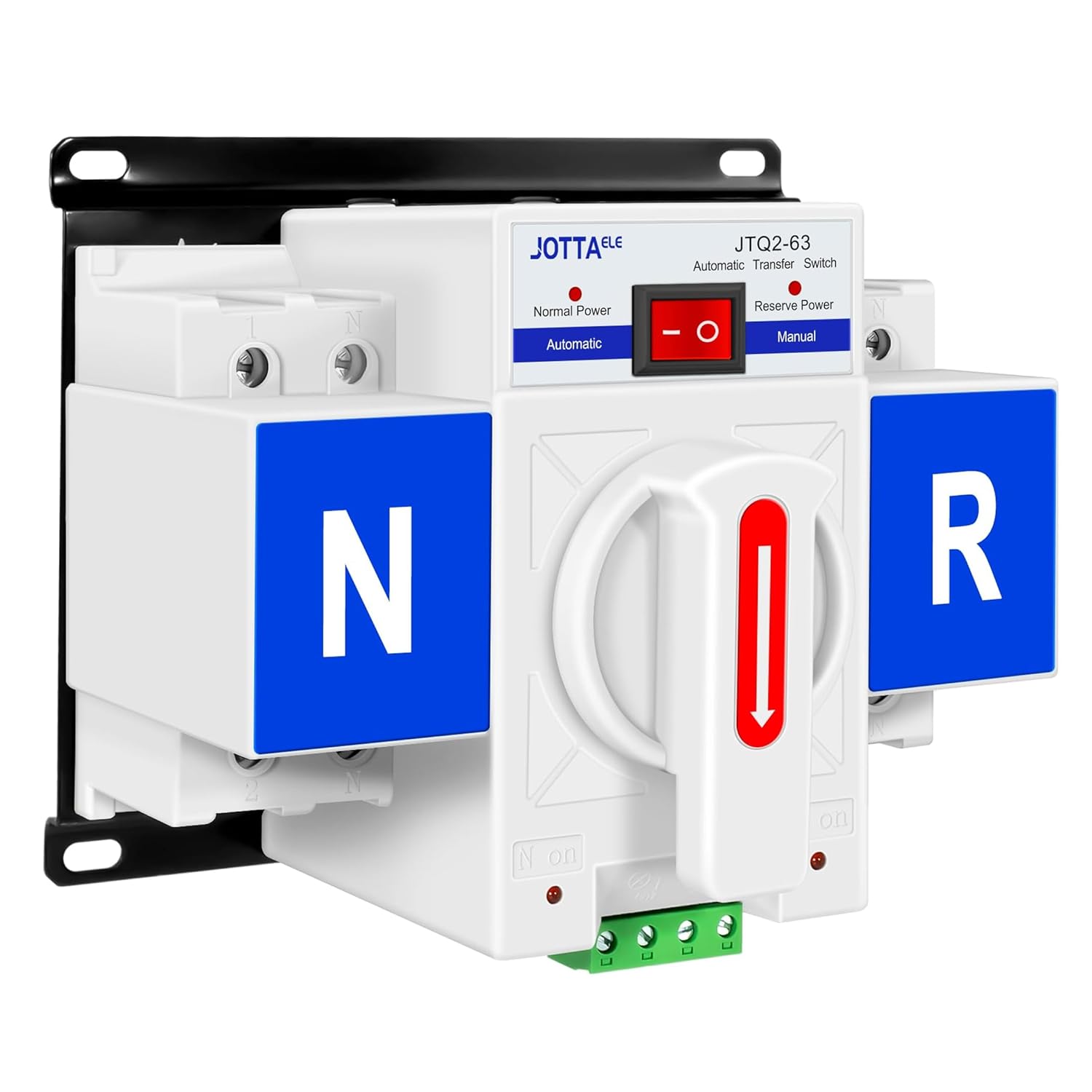

JOTTAELE Automatic Transfer Switch,2P 63A 110V 50/60Hz,Single Phase ATS for Emergency Generator Backup
4.5 (63 items)
Limited Time SaleUS$22.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210751535 | Release Date | 2026/04/02 | List Price | US$15.20 | Model Number | 210751535 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ★WORKING PRINCIPLE:This product called dual power automatic transfer switch,also called ATS. You can connect two power：one power as normal power, and the other one as reserve power. the type of power source can be city power,generator and Photovoltaic inverter.When normal power (N) goes off, the ATS will transfer to reserve power(R) to make power continuous, transfer speed is about 2s,when the normal power is back,ATS will transfer back to normal power.
- ★WORKING MODE OF ATS: There are two working mode of this ATS: "AUTO"and "MANUAL".If you need this device transfer automatically,please set the top switch to "Automatic",then when the normal power goes off, the ATS will transfer to reserve power automatically, when normal power goes back, it will transfer back to normal power automatically.If put button to "Manual" side, you need to manually turn the handle in the middle to make power transfer.Under "AUTO" mode, the power will be ON-ON. Under "MANUAL" mode, the power can be ON-OFF-ON.
- ★PRODUCT PARAMETERS: This transfer switch is CB type, it means this ATS is composed of two circuit breakers and mechanical interlocking.There are PCB circuit boards with thermal relays and motors inside.Working Current:6-63A;Working Voltage:110V;Frequency:50/60Hz.
- ★WIDE APPLICATION:Automatic transfer switch has the function of maintaining uninterrupted power supply,it usually suitable for household emergencies, firefighting, elevators,motorhome, etc.Such situation unable to withstand continuous power outages.But please note that its transfer time is about 2 seconds, which will cause a brief power outage of 2 seconds. If you need it to not affect the equipment working at all, please buy PC type ATS which with a transfer speed of 50ms.
- ★QUALITY ASSURANCE:We have our own factory for production and sales, with independent workshops and laboratories. If you have any questions about wiring and installation, please contact us and we will have professional engineers to answer them.
| UPC | 614141737475 |
|---|---|
| Color | Onecolor |
| Model | CB-2P 63A 110V |
| Wattage | 14140 watts |
| Terminal | Screw |
| Brand Name | JOTTAELE |
| Unit Count | 1.0 Count |
| Switch Type | Rotary |
| Circuit Type | 2-way |
| Contact Type | Normally Open |
| Manufacturer | JOTTAELE |
| Actuator Type | Rotary |
| Material Type | Plastic |
| Mounting Type | Wall Mount |
| Connector Type | Plug In |
| Control Method | Touch |
| Current Rating | 63 Amps |
| Operation Mode | ON-OFF-ON |
| Item Dimensions | 8 x 6 x 6 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 110 Volts |
| Specification Met | CE |
| Included Components | instructions |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 40 Degrees Celsius |
| International Protection Rating | IP00 |
