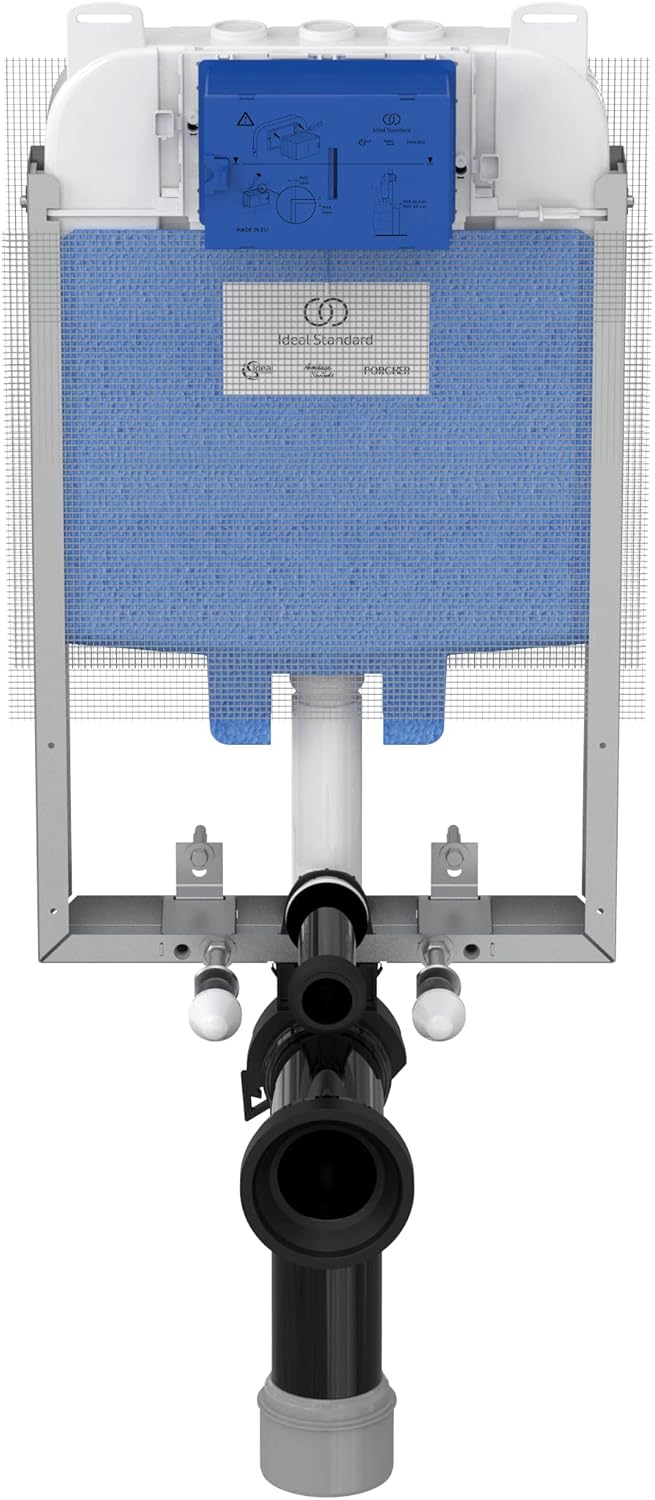

Ideal Standard - PROSYS 80 R014667 Concealed Toilet Flush Mount

Module for small spaces (tank thickness 74 mm) for installation in masonry walls of suspended vases. Compatible with all hanging pots (fixing nuts to 180/230 mm). Front mechanical drive (convertible into pneumatic or electric with kit*). Two-volume drain with the possibility of single discharge. Polypropylene (PP) box very resistant and resistant to thermal stress, supplied with anti-condensation coating. Double drain with factory adjustment to 6/3 litres (easily adjustable to 4.5/3 lt). Delayed charging thanks to SmartValve technology. Acoustic class 1NF . CE Mark EN 14055. Working pressure from 0.1 bar to 16 bar. Resistance to atmospheric humidity (Hr <90%) . Up to 3 water inlets. Galvanised sheet metal frame and tested for loads of 400 kg, minimum thickness 80 mm. Scope of supply: Stop tap G 1/2, with hole protection sponge ; Wall fixing kit ; Protection box on site ; Set for pot connection (rinse hose Ø 56x260 mm and connection pipe Ø 45x180 mm) ; Drain bend Ø 90 mm (L. 230 mm) ; Adapter Ø 90/110 mm ; 2 x Gaskets Ø 125 mm and Ø 45 mm ; 2 threaded rods M12 ; 2 protective caps ; Plaster net pre-mounted on the cassette

• Module for small spaces (tank thickness 74 mm) for installation in masonry walls of suspended vases; compatible with all suspended pots (fixing nuts at 180/230 mm); front mechanical drive (convertible into pneumatic or electric with kit); two-quantity discharge, with possibility of single discharge
• Polypropylene box (PP) very resistant and resistant to thermal stresses, supplied with anti-condensation coating; double discharge, with factory adjustment to 6/3 litres (easily adjustable to 4.5/3 lt); delayed charging thanks to smartvalve technology; acoustic class 1nf; CE EN 14055; working pressure from 0.1 bar to 16 bar; resistance to atmospatmospic moisture resistance (hr 90%); up to 3 water inlets; galvanised sheet metal frame and tested for loads of 400 kg, minimum thickness 80 mm
• Box contents: 1/2 g stopper, with hole protection sponge; wall fixing kit; protection box on the construction site; set for pot connection (rinse hose 56 x 260 mm and connection hose 45 x 180 mm), drain curve 90 mm (l. 230 mm); 90/110 mm adapter; 2 seals 125 mm and 45 mm; 2 threaded rods M12; 2 protective caps; plaster net pre-mounted on the cassette
• High quality product
