Idatalink Maestro for Compatible GM and Chevrolet Vehicles (2014+) HRN-HRR-GM3 Plug and Play Installation Harness with Speaker - Headunit Adpater Ready

Idatalink Maestro for compatible GM and Chevrolet Vehicles (2014+) HRN-HRR-GM3 Plug and Play Installation Harness with Speaker - Headunit Adpater ReadyiDatalink HRN-HRR-GM3Connect an iDatalink-compatible car stereo and retain steering wheel controls, OnStar, backup cam, and Bluetooth in select 2014-20 GM-made vehicles (ADS-MRR or ADS-MRR2 module also required)iDatalink working with compatible GM Vehicles .iDatalink's HRN-HRR-GM3 interface harness allows you to connect an iDatalink-ready car stereo in select 2014-20 compatible GM-made vehicles, working in conjunction w/iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls, your OnStar system w/ its Bluetooth capability, your factory backup camera, & your warning chimes. Plus, you'll be able to assign secondary functions to your steering wheel audio controls.Keep in touch w/ your truck.You'll be able to set up gauges on your receiver's screen to monitor engine performance, tire pressure, & other functions. In addition, you will retain full access to your factory vehicle customization options on your new radio's screen.Product highlights: Allows installation of a new receiver with an iDatalink port in select GM vehicles (also requires the Maestro ADS-MRR or ADS-MRR2 module)Retains the use of your steering wheel audio controls and warning chimesRetains OnStar (with Bluetooth), factory backup cam, vehicle customization options displays engine performance data on touchscreenWorks with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicingWhat's in the box:GM installation harnessExternal chime moduleOBDII connector harnessJumper harness (pre-connected to OBDII harness)Camera harnessOwner's manual MFR # HRN-HRR-GM3

• Connect an iDatalink-compatible car stereo and retain steering wheel controls, OnStar, backup cam, and Bluetooth in select 2014-20 GM-made vehicles (ADS-MRR or ADS-MRR2 module also required)

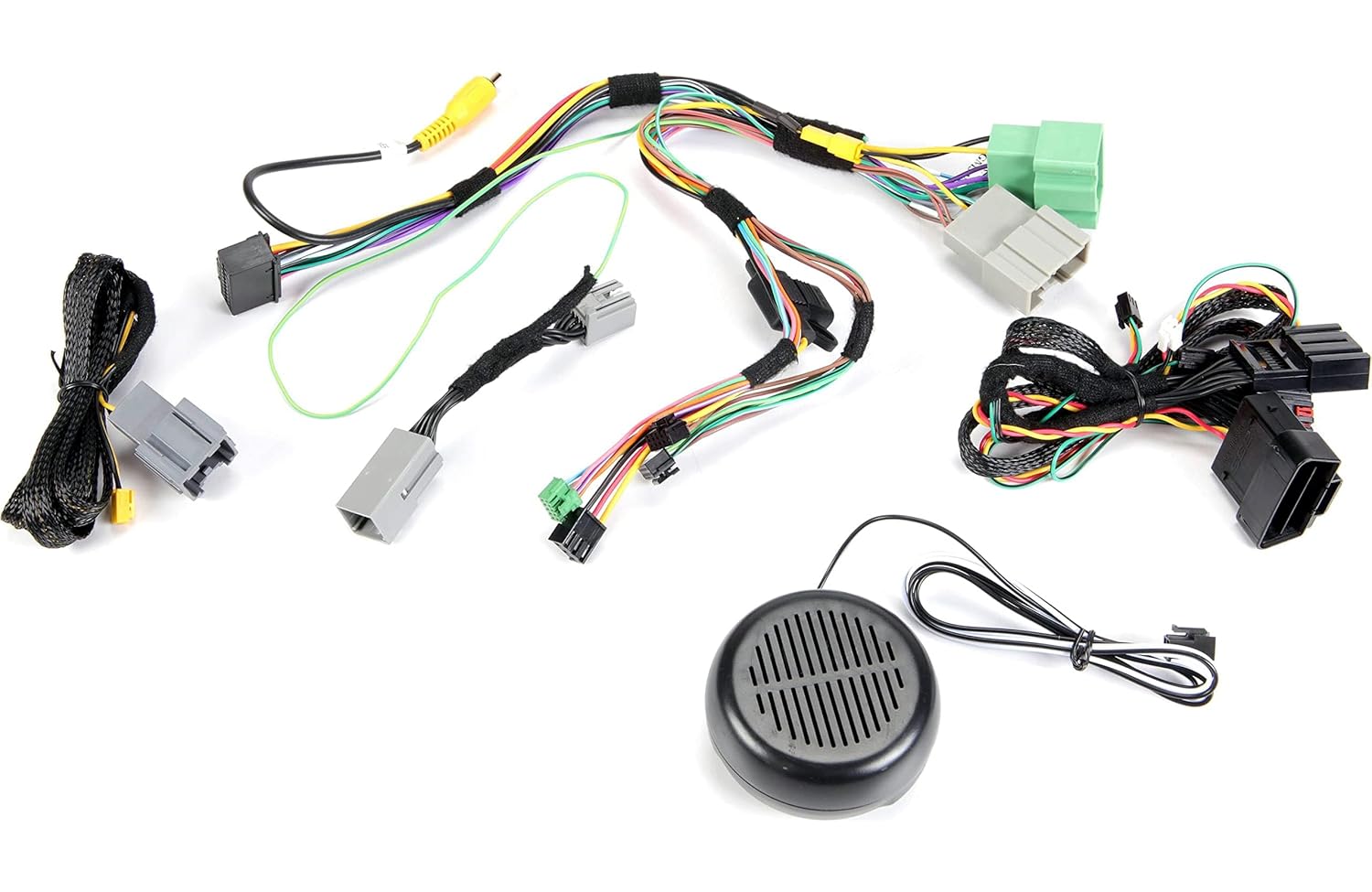

• iDatalink's HRN-HRR-GM3 interface harness allows you to connect an iDatalink-ready car stereo in select 2014-20 compatible GM-made vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls, your OnStar system with its Bluetooth capability, your factory backup camera, and your warning chimes. Plus, you'll be able to assign secondary functions to your steering wheel audio controls.
• You'll be able to set up gauges on your receiver's screen to monitor engine performance, tire pressure, and other functions. In addition, you will retain full access to your factory vehicle customization options on your new radio's screen. This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.
• The package includes connectors that plug in between the Maestro module, your vehicle's radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness.
• INSTALLATION NOTE: This HRN-HRR Plug & Play T-Harness REQUIRES an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and the corresponding Idatalink Maestro Car Stereo Head-Unit ACC-HU-ALP1 (Alpine), ACC-HU-PIO1 (Pioneer), ACC-HU-SON1 (S0NY), ACC-HU-KEN1 (KENWO0D/JVC with 22-Pin Connector), ACC-HU-KEN2 (KENWO0D/JVC with 16-Pin Connector), ACC-HU-KEN3 (2024 & Newer KENWO0D/JVC with 22-Pin Connector), ACC-HU-BOS1 (BOSS Radio) or the ACC-HU-JEN1 (Jensen) Installation T-Harness. Each Sold separately. These adapters allows you to connect select car stereos to compatible iDatalink T-harnesses.
• (ADS-MRR: Vehicle Coverage: 30 Makes - Models: 4318 - Years: 2002+) - (ADS-MRR2: Vehicle Coverage: 30 Makes - Models: 4582 - Years: 2002+ with 3 Programmable Outputs)
