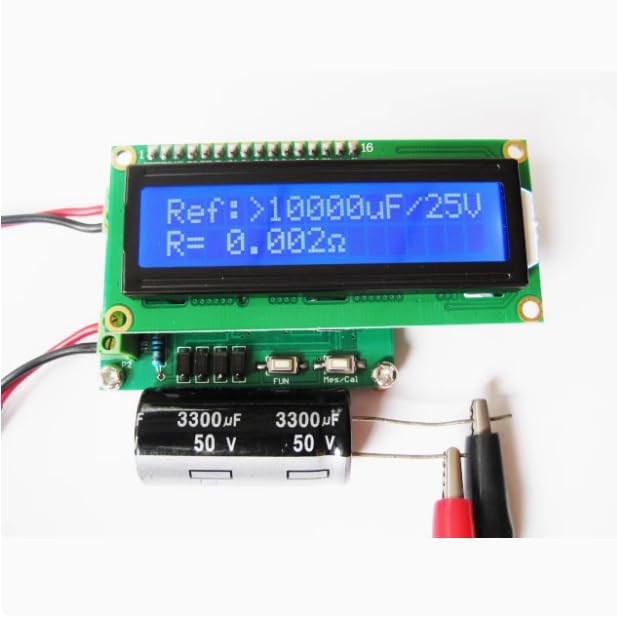

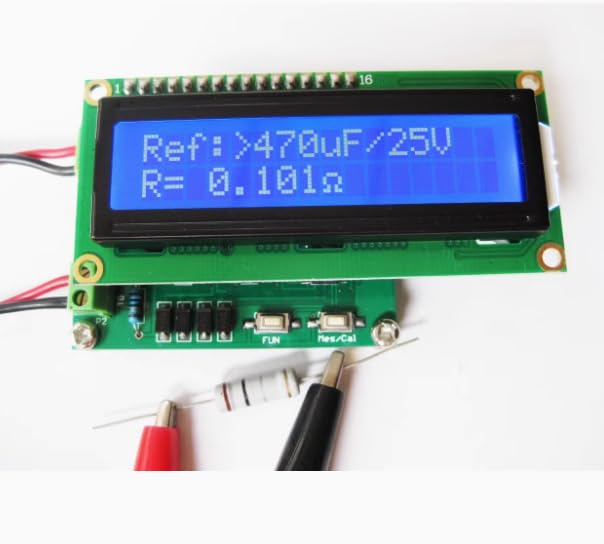

HR200 Capacitor Online Tester ESR Tester ESR Meter Compact
4.8 (54 items)
Limited Time SaleUS$18.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210912385 | Release Date | 2026/04/04 | List Price | US$12.60 | Model Number | 210912385 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Technical parameter table: Number Project Parameters Unit Remarks 1. Measure the resistance range from 0.001 to 120 Ω Measurement frequency: 100K Hz 3 measurement frequency resolution of 1 m Ω 4. Operating voltage: 7-12 VDC 5 working current<50 mA 6 working temperature -40 ℃~65 ℃ Celsius Storage temperature: -40 ℃ to 65 ℃ Celsius 8 dimensions 57 * 45 * 20 mm length X width X height Attention: The display screen has backlight and a standard LCD1602 interface. 4、 Interface description and related operations P1 interface (power supply) VDD: Positive pole of power supply (7-12V) GND: Negative pole of power supply P2 interface (measurement) TA: Connect measuring components. TB: Connect measuring components. 4、 Button Description Mes/Cal: Calibration Table (Short Circuit Measurement Line Calibration Table) FUN: Not used;
- Operating voltage: 7-12 VDC
- working current<50 mA
- Measure the resistance range from 0.001 to 120 Ω
- VDD: Positive pole of power supply (7-12V)
- GND: Negative pole of power supply
| Color | Green |
|---|---|
| Brand Name | YILUBAO |
| Style Name | see details |
| Manufacturer | YILUBAO |
| Power Source | See Details |
| Included Components | see details |
