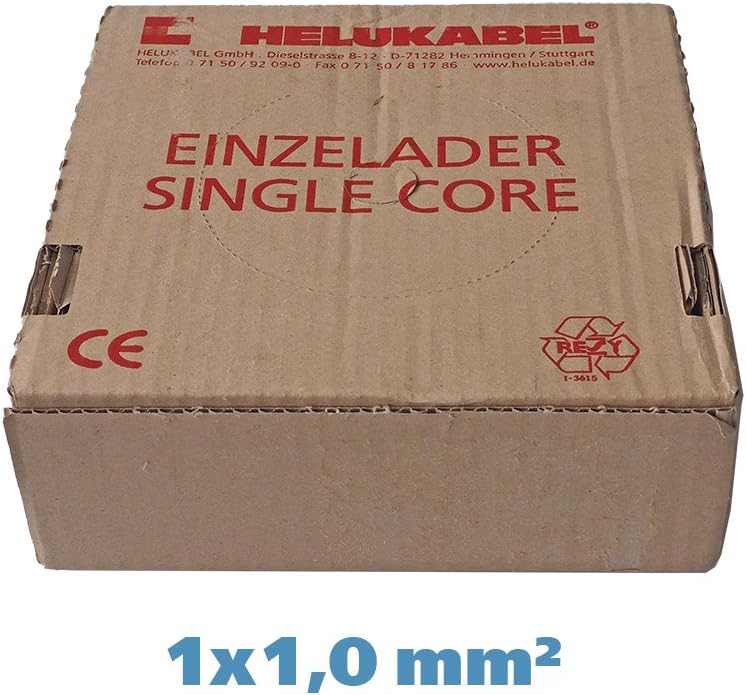

HELUKABEL CORE Lines Ring, Blue, 29125

Technical data: PVC single wires according to DIN VDE 0285-525-2-31 / DIN EN 50525-2-31 and IEC 60227-3. Temperature range moves -5°C to +70°C not moved -30°C to +80°C ●Rated voltage U0/U 300/500V ●Test Voltage 2000 voltage. V ● Insulation resistance min. 10 MOhm x km ● Minimum bending radius firmly laid 4 x wire diameter ● Radiation resistance up to 80 x 106 cJ/kg (up to 80 Mrad) construction ● Copper wire blank, according to DIN VDE 0295 Kl.5, fine-wired, BS 6360 cl.5, IEC 60228 cl. A5 ● A5. Insulation made of PVC mixture type TI1 according to DIN VDE 0207-363-3 / DIN EN 50363-3 and IEC 60227-3. Wire identification see table below. Features: The materials used during production are silicone and cadmium*and*from paint-wetting substances. Tests. PVC self-tests. Extinguishing and flame extinguishing adverse according to DIN VDE 0482-332-1-2, DIN EN 60332-1-2, IEC 60332-1 (complies with DIN VDE 0472 part 804 test type B).

• Single core / wire cables PVC
• strands blank
