Fischer 25 dowels UX, 10 x 60 mm, for Wall, Perforated Brick, plasterboard, 542454, Gray, Set of 25 Pieces
4.5 (138 items)
Limited Time SaleUS$14.65 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211260472 | Release Date | 2026/04/04 | List Price | US$9.76 | Model Number | 211260472 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product description: The universal operating principle (knotting or spreading) allows it to be used in all carrier materials full, drilled and in plates. UX attachment is the right choice if you do not know the base material. The side flaps of the UX ensure optimal guidance of the screw. The serrated anti-twist flaps prevent turning in the hole. This ensures maximum safety during installation. The mounting kits with screws, hooks and round hooks provide the right solution for all applications. Suitable for: Concrete Solid brick made of brick. Solid brick made of calcium silicate. Solid block made of lightweight concrete. Semi-full brick (drilled vertically) made of brick Semi-full brick (vertically perforated) made of calcium silicate Hollow block made of lightweight concrete. aerated concrete Hollow base made of concrete and brick. Plasterboard and gypsum fibreboard. Natural stone. Chipboard. Full wall plaster plate. How to use: UX with clamp is suitable for non-continuous installation; UX without clamp is suitable for through-through installation. Screwing in the screw causes expansion in full carrier material and knotting in hollow materials. The required length of service life is given by the length of the dowel + thickness of the object to be attached + 1 x screw diameter. Suitable for wood and chipboard screws as well as double threads. For plate material, the non-threadless part of the screw must not be longer than the object to be attached and the UX with clamp must be used. The distance from the edge must be at least the length of the fastening.

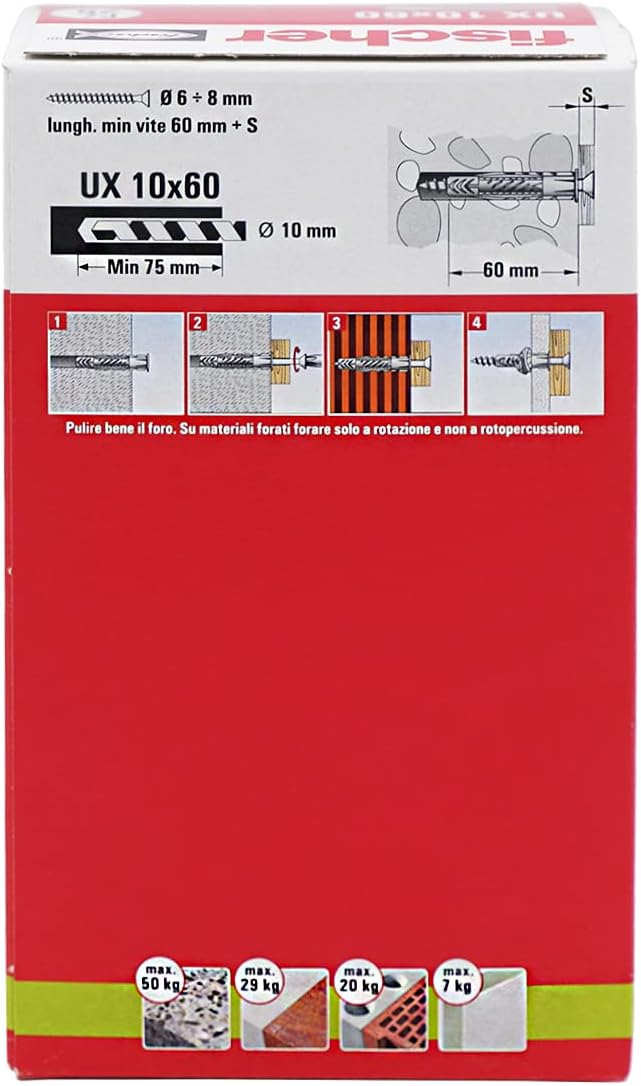

- Fischer UX dowel drill diameter: 10 mm; minimum hole depth: 75 mm; dowel length: 60 mm
- Support materials: solid masonry, perforated masonry, plasterboard
- Universal operation (knotting or spreading) allows for use in all backing materials full, drilled and in panels; uX is the right choice if you don't know the base material
- Screwing in the screw causes expansion in full carrier material and knotting in hollow materials

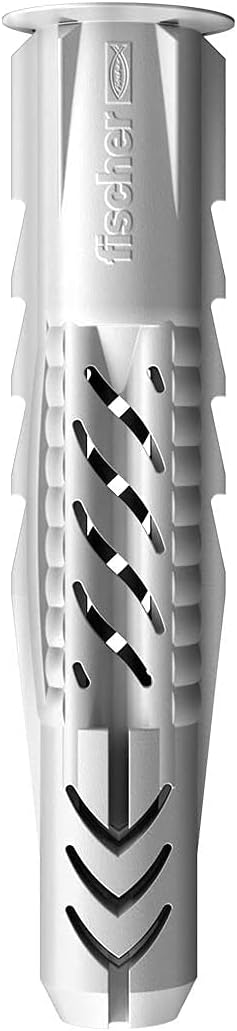

- The side slats of the UX ensure optimal guidance of the screw; the serrated anti-twist ribs prevent turning in the drill hole
| Brand | fischer |
|---|---|
| Color | Gray |
| Model | 542454 |
| Set Name | Set of 25 Pieces |
| Head Type | Senkkopf |
| Size Name | 10 x 60 mm |
| Metal Type | Alloy Steel |
| Unit Count | 25.0 Count |
| Part Number | 542454 |
| Thread Size | 10 mm |
| Thread Type | Self-tapping |
| Drive System | Cross |
| Finish Types | Zinc Plated |
| Manufacturer | Fischer |
| Thread Class | 2A |
| Thread Style | Right Hand |
| Fastener Size | 10 x 60 mm |
| Fastener Type | Screw |
| Item Diameter | 10 Millimeters |
| Material Type | chipboard |
| Item Type Name | 25 dowels UX, 10 x 60 mm, for wall, perforated brick, plasterboard, 542454 |
| Exterior Finish | Zinc |
| Item Dimensions | 3.03 x 2.17 x 5.31 inches |
| Thread Coverage | Partially Threaded |
| Number of Pieces | 25 |
| Screw Head Style | Socket |
| Screw Point Style | Flat Point |
| Included Components | 25 UX dowels |
| Set Screw Thread Type | M10 x 1.5 |
| Compatible Groove Diameter | 1E+1 Millimeters |
| Global Trade Identification Number | 08001132064887 |
