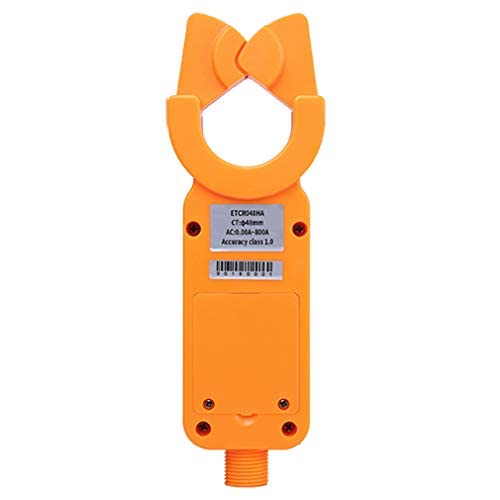

ETCR048HA High Voltage Clamp Leakage Current Transformer Sensor for AC Current Higer Harmonic Current Phase Power Factor Measurement Etc

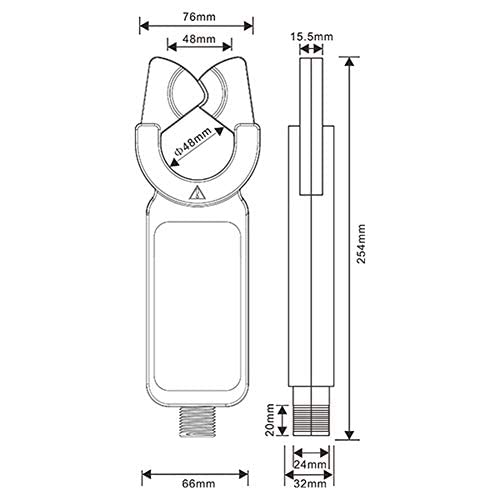

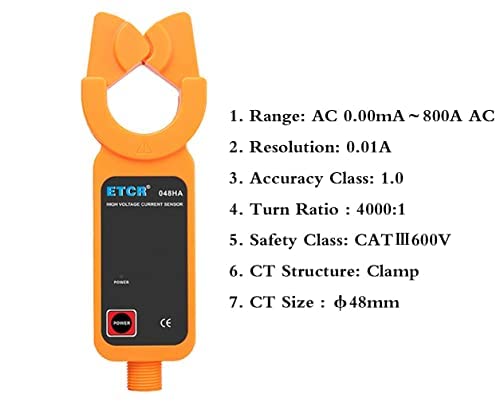

Main Function: 1. Detecting of AC leakage current/current, higher harmonic current, phase, electric energy, power, power factor, etc. 2. Range: AC 0.00mA～800A AC 3. Resolution: 0.01A 4. Accuracy Class: 1.0 5. Turn Ratio : 4000:1 6. Safety Class: CATⅢ600V 7. CT Structure: Clamp 8. CT Size : φ48mm Technical Specifications Range:0.00A～800A AC Resolution:0.01A Accuracy Class:1.0 Phase Error:≤2° Turn Ratio:400:1 Reference Load:≤20Ω Clamp Size:φ48mm Weight:230g Output interface: 180mOutput line:2P white terminal, line length 180m Working Frequency:45Hz～100KHz Insulating Strength:AC3700V/rms ( between the core and coil) Safety Class:CATⅢ600V Output Mode:Inductive current output (can output current signal or voltage signal) Working Temperature:-15℃～50℃ Remark:The battery compartment can hold 4 x 1.5VAAA alkaline dry batteries to provide power for secondary development.(battery not included)

• ❤❤(1)ETCR048HA high-voltage clamp leakage current is suitable for high-precision detection of AC current, higher harmonic current, phase, electric energy, power, power factor and so on.
• ❤❤(2)With a unique automatic plug-in structure, it is easy to use, without disconnecting the line under test, non-contact measurement, safe and fast, especially suitable for line fault inspection instrument.
• ❤❤(3)Widely used in electric power, communications, meteorology, railways, oil fields, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
• ❤❤(4)The iron core of ETCR048HA high-voltage clamp current transformer is made of permalloy and adopts double-layer shielding technology. The influence of the external magnetic field is extremely small, which ensures high-precision, high stability and high reliability of continuous measurement without interruption.
• ❤❤(5)The transformer can output current and voltage signals, and the range, output signal, and output interface of the transformer can be customized according to customer requirements.
