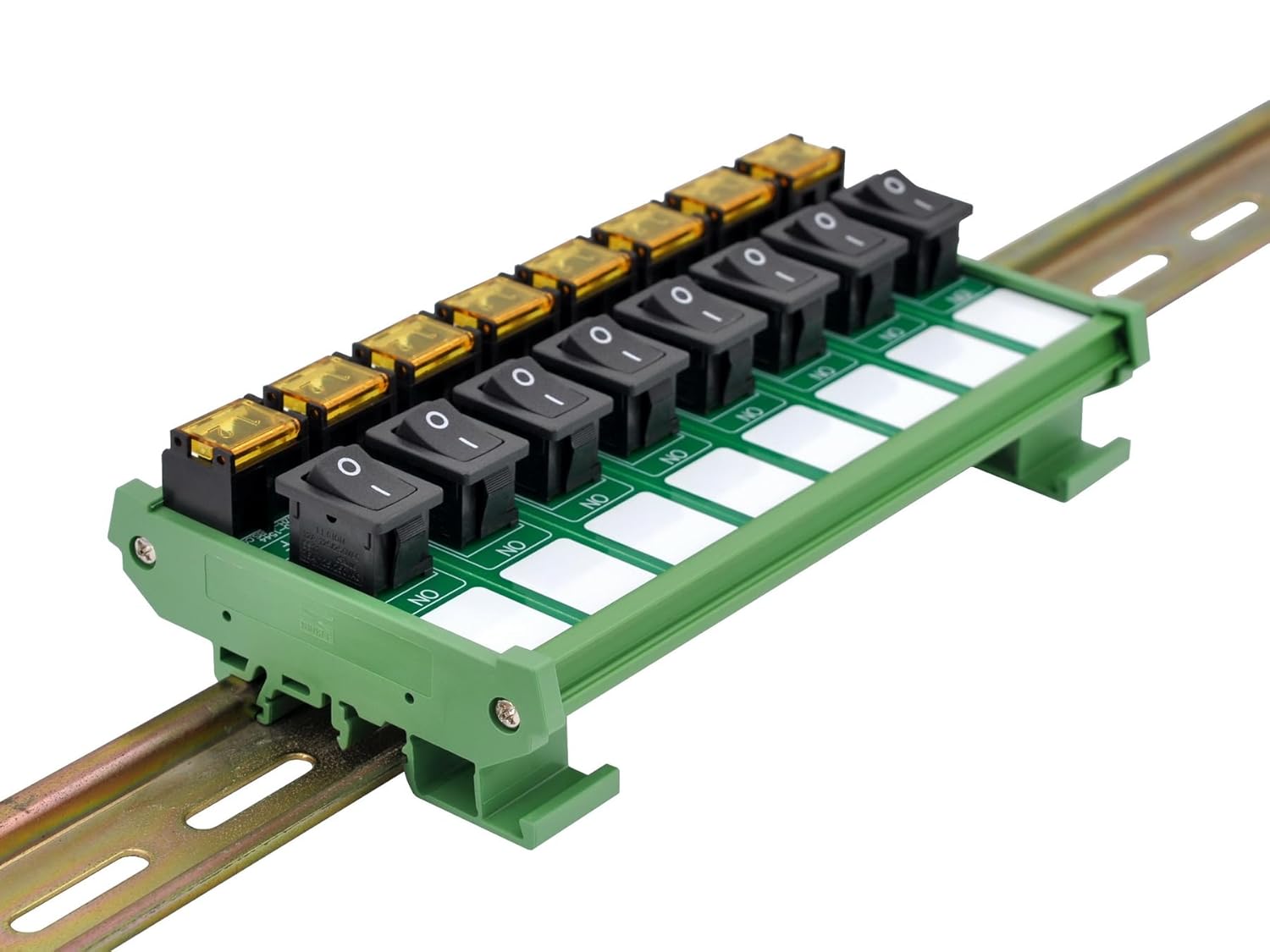

DIN Rail Mount Rocker Switch Module, 10Amp 250VAC/50VDC (8 Channel)
4.9 (22 items)
Limited Time SaleUS$19.20 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211068427 | Release Date | 2026/04/04 | List Price | US$12.80 | Model Number | 211068427 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel). 2, ON-OFF rocker switch. 3, Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters. 4, High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail. 5, UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
- Rated voltage: 250VAC or 50VDC. Rated current 10 Amp (for per channel).
- ON-OFF rocker switch.

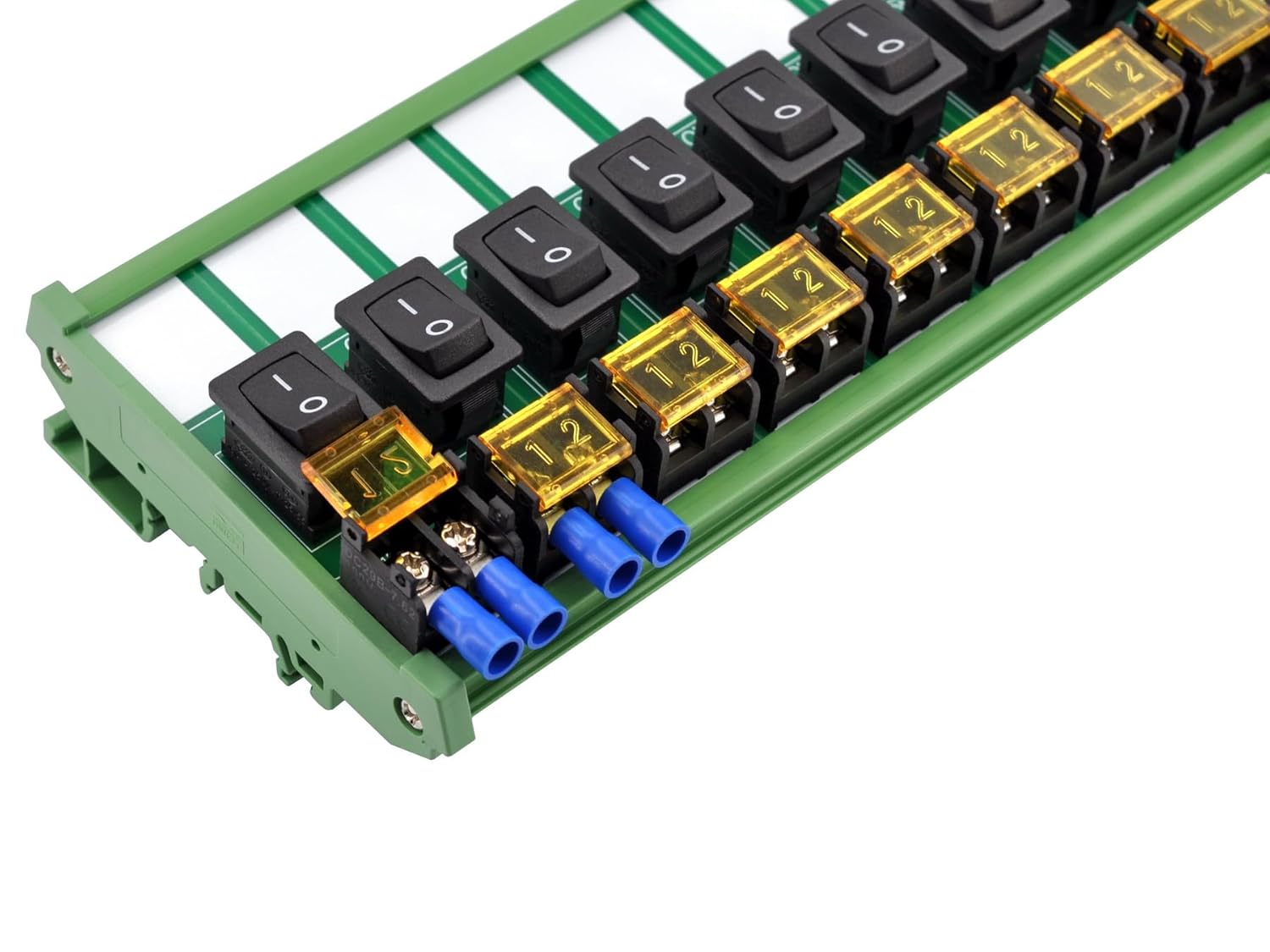

- Terminals pitch 7.62mm/0.3", removable cover, Metric M3 screw. With vinyl-insulated spade connectors, can support cable 16 - 14AWG / conductor cross section 1.5 - 2.5 square millimeters.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm 32mm 15mm rail.
- UL CE certified fireproof nylon material housing carrier. UL 94-V0 certified FR-4 fiberglass PCB. CE CQC certified terminal blocks.
| Model | 8877cc18-c4df-4ef0-97be-1e35bd9a2206 |
|---|---|
| Wattage | 2500 watts |
| Terminal | Screw |
| Brand Name | OONO |
| Unit Count | 1.0 Count |
| Switch Type | Rocker |
| Circuit Type | 8-way |
| Contact Type | Spst |
| Manufacturer | CZH-LABS |
| Actuator Type | Rocker |
| Material Type | Nylon |
| Mounting Type | DIN Rail Mount |
| Connector Type | Spade |
| Control Method | Touch |
| Current Rating | 10 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.39 x 0.39 x 0.39 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 250 Volts (AC) |
| Specification Met | True |
| Included Components | fork connectors |
| Upper Temperature Rating | 85 Degrees Celsius |
