Digital Isolation Module High-Speed Quad-Channel Digital Isolators Output Short Circuit Protection Function Voltage Isolator Board Protection

Specification: Input voltage range: 4.5V~5.5V Output current: Iout ≤ 200mA IC isolation voltage: 5KV Power isolation voltage: 1.5KV Power conversion efficiency: 88% MAX No-load ripple: Vpp(out) ≤ 15mV @Iout = 0 mA Working temperature: -40℃ ~ +85℃ Size: 3.6*2.5cm (1.41*0.98in) Package includes: 1*Digital isolation module 2*pin header 2*terminal block

• This module realizes the complete isolation of communication between the master control terminal and the controlled terminal. It is suitable for use in low-power applications. If you want to increase the output power, you need to cut off the power supply short-circuit block on the back and weld the external power supply for power supply (input power supply). The voltage needs to be less than 5.5V)
• With input anti-reverse connection function, output short-circuit protection function, with output power indicator light
• Applicable communication interface: UART, SPI communication, single-wire communication (not applicable to IIC communication)
• The hole spacing of the board is 0.1”, suitable for mounting on a breadboard

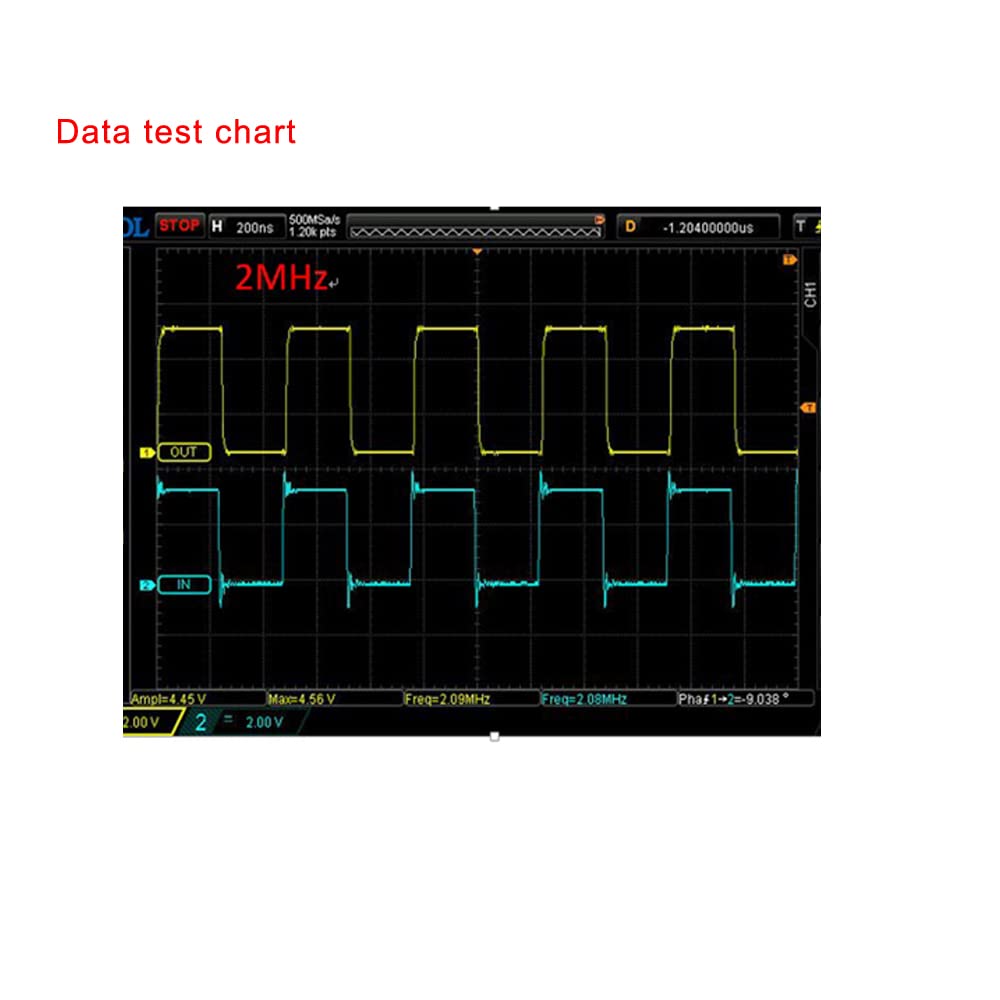

• Recommended data transmission speed: ≤ 50Mbps (theoretical maximum speed 150Mbps)
