Digital I/O Module for Experimentation and Prototyping of Digital Circuits
4.6 (123 items)
Limited Time SaleUS$29.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211045817 | Release Date | 2026/04/04 | List Price | US$20.00 | Model Number | 211045817 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

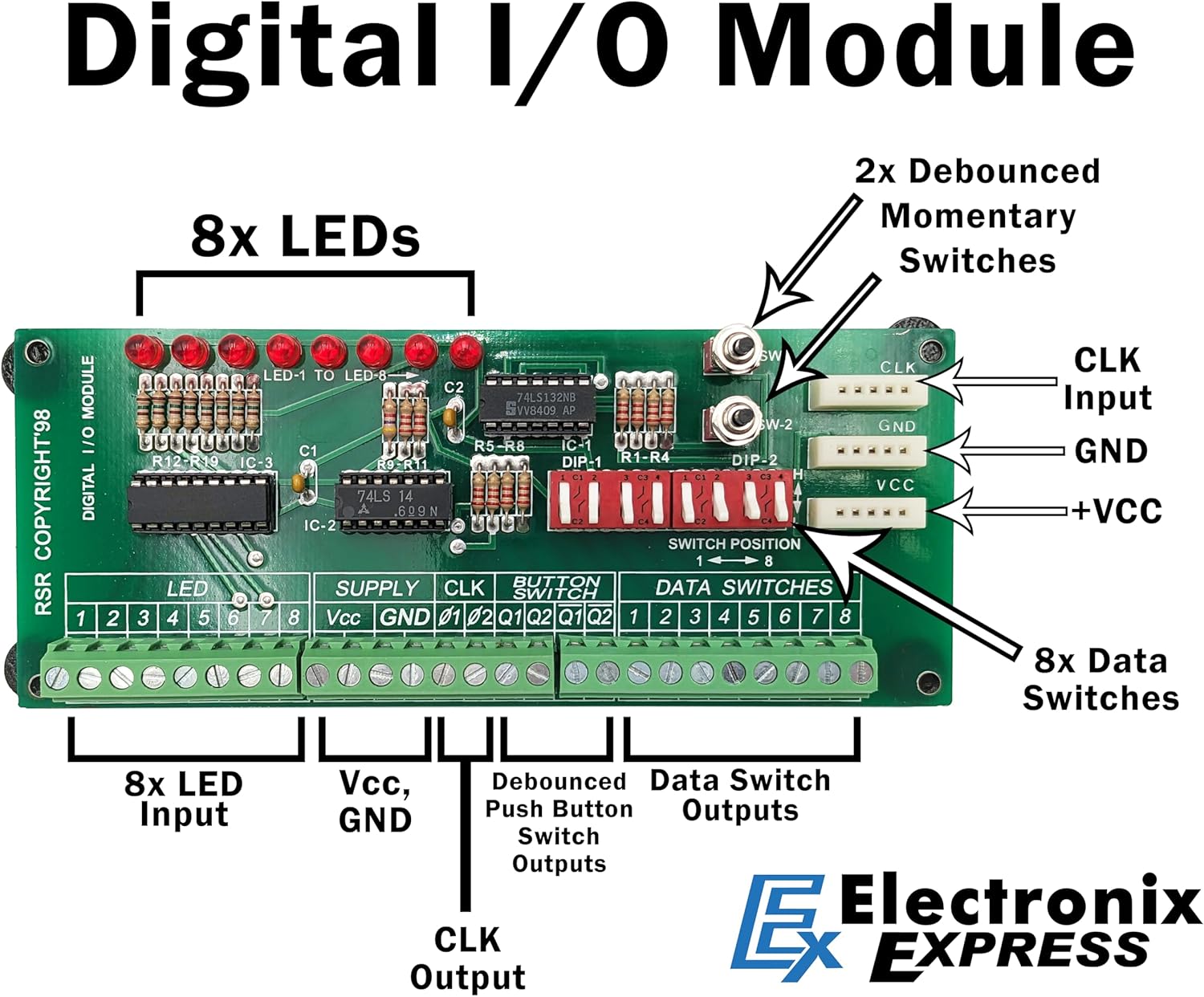

This trainer provides all necessary features for experimentation and prototyping of digital circuits. It includes 8-SPDT toggle DIP switches, 8-LED indicators, clock conditioning circuit, two pulse switches, and 26 screwless terminal blocks for easy circuit connection. Power supply - The board can be powered two ways: A. Using terminal block Vcc and GND B. Using tie blocks Vcc and GND LEDs 1-8: Detects digital signal 1 or 0 Clock: Provides TTL compatible clock signal from external signal source 8 SPDT toggle DIP data switches: Generate digital signals, H is 1 and L is 0 Debounced push button switch outputs: Provides TTL compatible pulse 2 x Debounced momentary pulse switches 26 Screwless terminal blocks for easy circuit connection
- This pre-assembled trainer provides all necessary features for experimentation and prototyping of digital circuits
- Features 8-SPDT toggle DIP switches, 8-LED indicators, clock conditioning circuit, two pulse switches, and 26 screwless terminal blocks for easy circuit connection
- Can be powered using terminal block Vcc and GND or using tie blocks Vcc and GND
| Brand | RSR ELECTRONICS INC |
|---|---|
| Manufacturer | RSR Electronics Inc |
