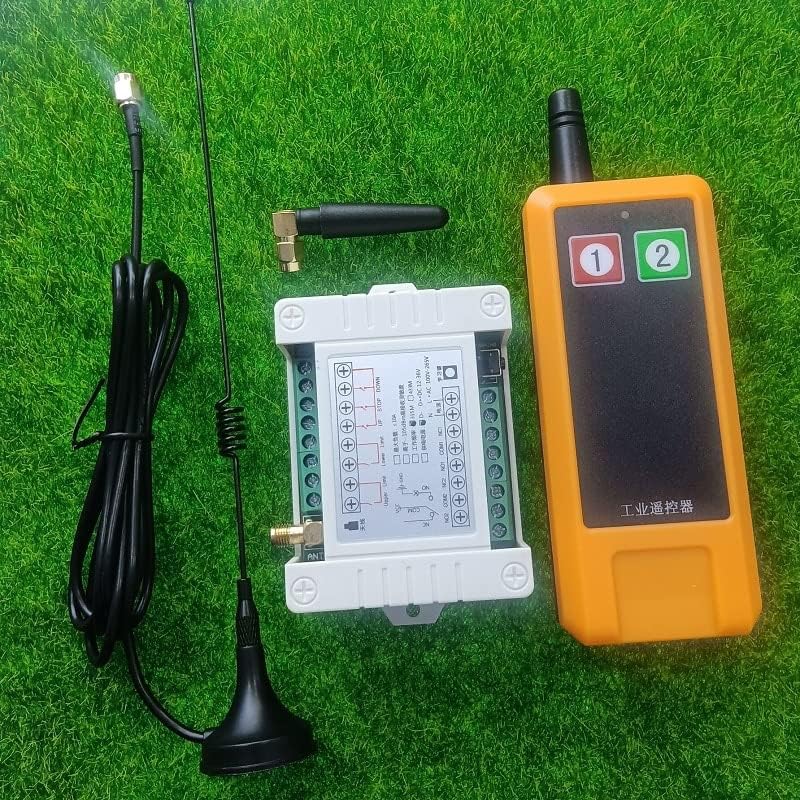

DC 12V 24V 36V 10A Remote Control Switch Motor Forwards Reverse Up Down Stop Door Window Curtain Industrial Control Remote - (Color: C)

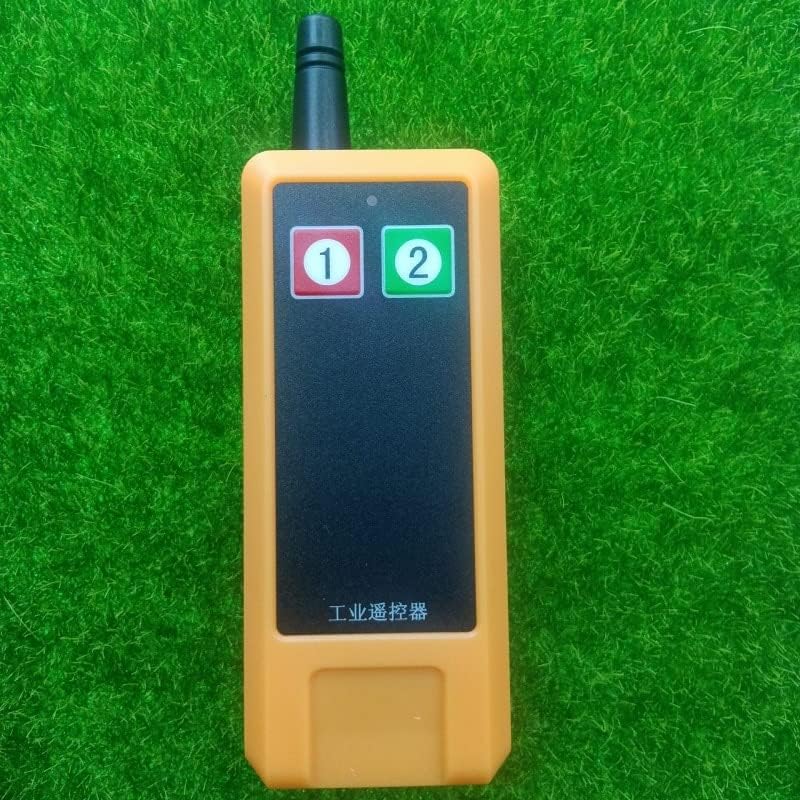

Note:only have 433mhzRemote control (transmitter)Operating Voltage: 1pcs 9VOperating Frequency: 433MHzFrequency Distance: 20M-200M(please notice that is the ideal distance without any block and signal interfere , it would rise and fall about 10%-50% with the block and signal interference ).Specifications:Control Lights, TVs, Motors, Fans, Cameras, Video signals, Audio signals, electrically operated Doors/ Locks/ Windows.1.Working Voltage: DC 12V-48V2.Working Frequency:315MHz/433MHZ3.Receiving sensitivity: -105dBM4.Max Load: 10A Relay ( have better load less than 5A)5.PCB Size:75*58*15mm Case Size :95*62*29mm6.Function: Limit & Wire External Button7.Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON)8.Out State: Momentary Latched Adjusted by the Jumper on the Receiver,( we default as Latched, if you need use Momentary to change the Jumper on the Receiver ,)9.Working way changed by jumper on pinsMomentary: jumper doesn't connect any two pins.Relay: Press and hold -> On.Release -> Off.Toggle: jumper connects the pin T and pin S.Relay: Press -> On.Press same button again -> Off·Latched: jumper connects the pin L and pin S.Relay: Press -> On.Press other button -> Off.12.When the relay is activated, the buzzer synchronize with a “beep” prompt.13.When the receiver output state is “Latched”, we have set it 0.5s time delay Forwards and reverse, it is the Protection function.14.We have made transmitter and receiver working together and test it before it,when you get it don't need to do anything ,just install it.15.Learning Code :(1) Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up (first button default Forward) ,the learning indicator flash 5 times and OFF,It mean the

• Color: C
• Support app: No
• Frequency: 315mhz /433mhz
• Channel: 2
• Package: No
