DAE VM-75P Positive Displacement Water Meter, 3/4” NPT Couplings, Pulse Output, Gallon

flash sale iconLimited Time Sale
Until the end
18
18
48

US$49.79 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$33.20
quantity

Product details

Management number 211707414 Release Date 2026/04/04 List Price US$33.20 Model Number 211707414
Category
  • Can be installed in any position, vertically or horizontally, dial facing upwards, downwards or side-way, water flowing downwards or upwards. With internal non-return valve. Not for use of pit application. For outdoor use, please refer to DAE MJ-75c, DAE PD-75 or DAE PD-75y(DAE Controls Website). This is a Piston Positive Displacement water meter which may have clicking noise (Fixing the meter to a supporting bracket can minimize it).
  • Cloud Metering available (2nd picture) with DAE CC2030 Gateway. CC2030 will collect water usage from DAE AMR (for 16 meters) or AMR130 (for 1 meter) and send them to cloud server through Ethernet. With PC, cell phone, the landlords can see real time data, monthly water usage & billing reports to their tenants. If there is abnormal usage (ex. Broken piping), an email alert will be sent to your cell phone. No IT guy required. Just connect wires as per a simple picture (see video) & ready to go.
  • Ready for use with DAE CO-10 (Electronic Pulse Counter) or DAE CO-10 KIT - An inexpensive remote reading solution (6th picture). Can also use with DAE AMR130 (Auto Meter Reading Module for single water meter) and AMR (for 16 water meters) for remote reading (5th picture). CO-10 or AMR130 will be purchased separately. Conforms to both AWWA C700 and ISO 4064 Class C. for City water only.

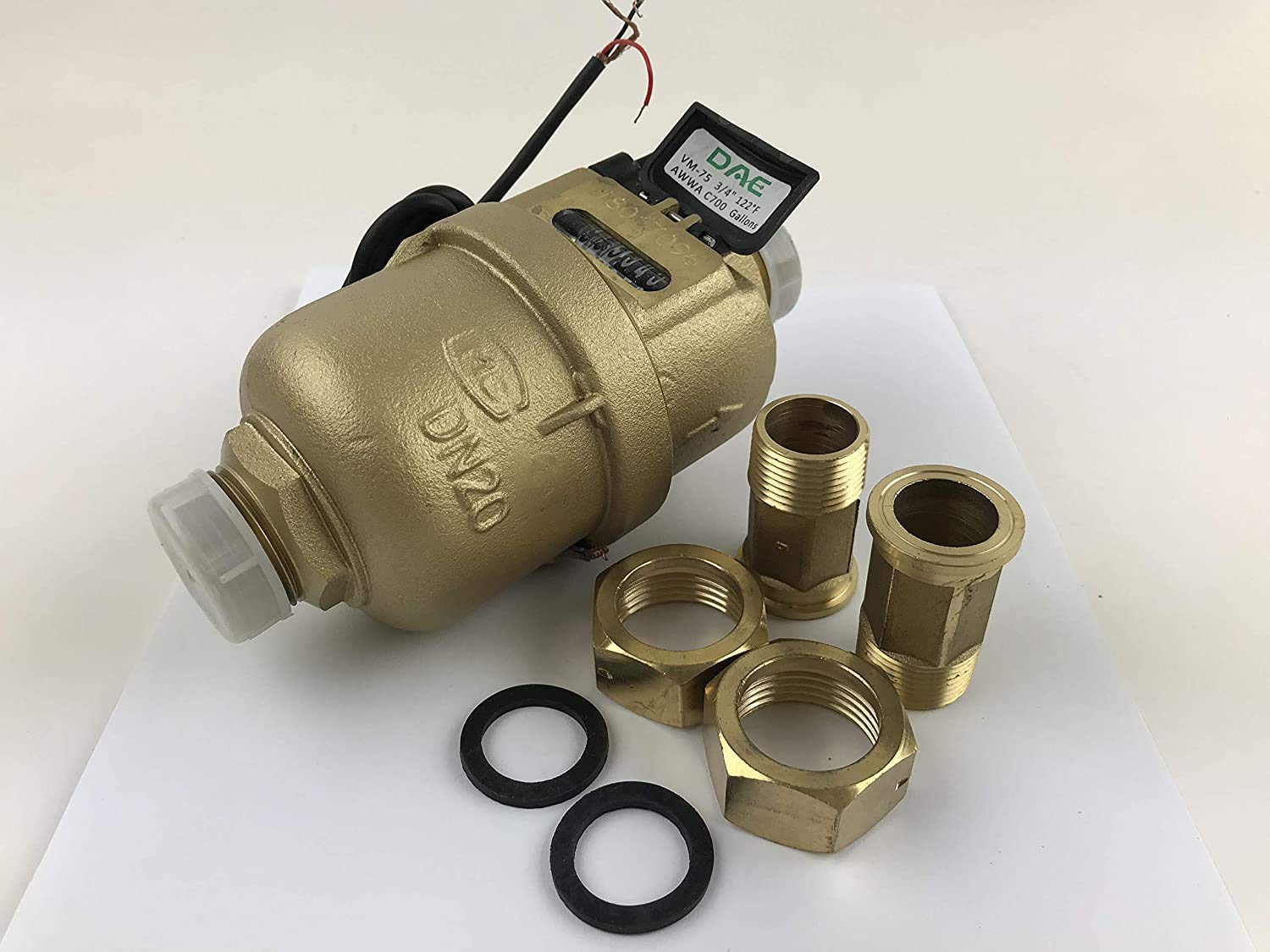

  • To install the DAE 3/4" water meter with the 3/4" garden hose at both ends, you will need 2 DAE CG-75 Fitting. Factory Calibration Certificates available. DAE Controls LLC is a Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website. Please choose DAE PD-y series (like DAE PD-75y, DAE Controls Website) or DAE U series Ultrasonic meter (like DAE U-75) if you would like to have a quieter meter.
  • Accuracy: +/-1.5% within normal flow rate range. Can detect very small flow. Safe Maximum Flow Rate: 20 GPM (4.5 m³/h), Maximum Continuous Flow Rate: 10 GPM (2.3 m³/h), Minimum Flow Rate: 1/4 GPM (0.06 m³/h), Normal Test Flow Limits: 1-20 GPM. DAE VM-75P 5/8"*3/4" meter is not a meter with a 5/8" inlet and a 3/4" outlet. It is with 3/4" NPT couplings for both 3/4" inlet and 3/4" outlet.
Manufacturer DAE
Item model number VM-75P
Product Dimensions 6.5 x 3.5 x 3.5 inches
Is Discontinued By Manufacturer No
