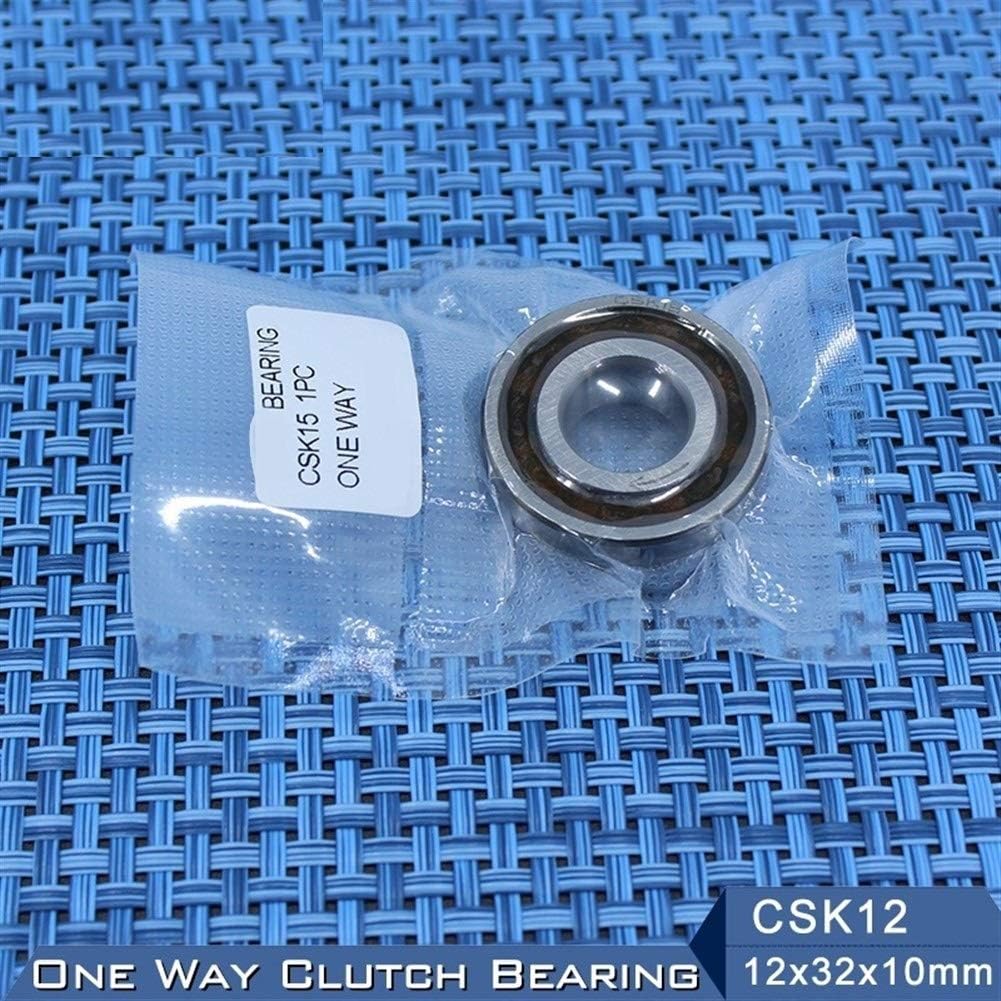

CSK12 One Way Bearing Clutches Without Keyway CKK12 CSK6201 Free Wheel Clutch Bearings CSK201 12X32X10mm

BearingsBearingCSK ONE WAY BEARING CLUTCHESType CSK is a sprag type clutch integrated into a 62 Series ball bearing (except sizes 8 and 40). It is bearing supported, shipped grease lubricated and protected against dust larger than .012" (.3mm) diameter. The use of additional "nylon" type seals is recommended especially when the working temperature exceeds 122°F (50°C).Oil bath lubrication is also possible if the original grease is first flushed out using a suitable solvent.Torque transmission is ensured by a press fit assembly into a rigid outer housing with N6 tolerance, and onto a shaft with n6 tolerance. The initial bearing radial clearance is set at C5, and is reduced if using the press fit as specified.One race may be glued. If both races are to be glued, performance will be reduced or a C3 bearing clearance will be necessary.Operating temperature range: 21 to 140°F (-6 to 60°C). Special grease available for operating temperatures: -40 to 212°F (-40 to 100°C).CSK..2RSCSK..2RS clutches are .197" (5mm) wider than a standard 62 Series bearing, as they are equipped with lip seals for wash down applications.CSK..PCSK..P has the same construction and outside dimensions as type CSK, but has a keyway on the inner race. These clutches can be mounted on a shaft to k6 tolerance. The outer race must be pressed into a rigid housing to N6 tolerance.CSK..PPCSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are k6 on the shaft and K6 in a rigid housing. An h6 tolerance on the shaft or H6 in the housing are also acceptable for a light press fit assembly.Operating temperature range: 21 to 140°F (-6 to 60°C). Special grease available for operating temperatures: -40 to 212°F (-40 to 100°C).Features:Needle bearings are roller bearings with cylindrical rollers. The advantages of needle roller bearings
