Colorimeter Color Meter Testing Equipment with Lab Lch Measurement Modes 8mm Measuring Aperture

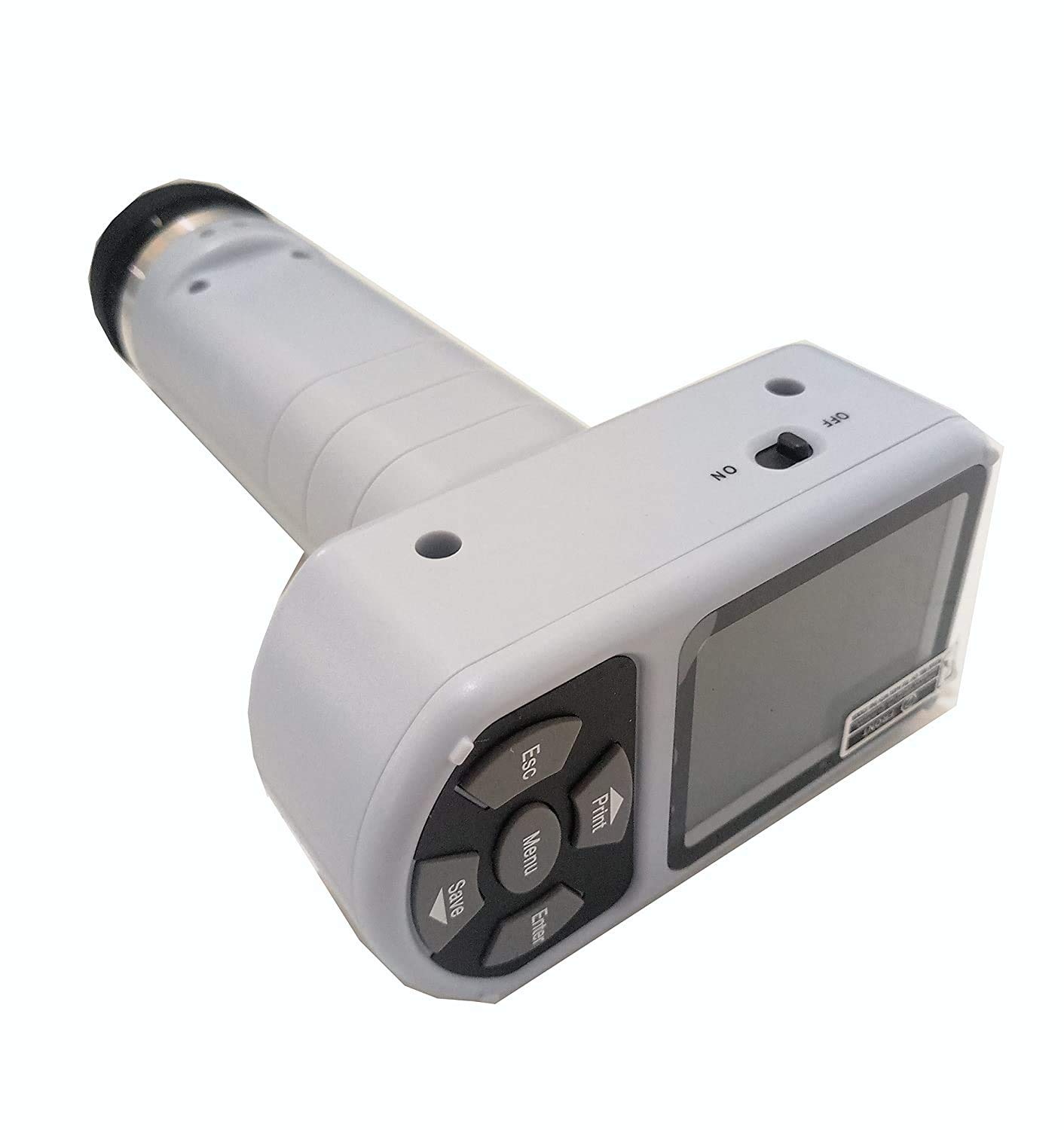

Colorimeter Color Meter Testing Equipment With Lab Lch Measurement Modes 8mm Measuring Aperture Introduction: ✿According to international CIE1931,1976 and other relevant standards and national standards. ✿The JZ-300 is a new economic and practical general colorimeter, We introduce the latest imported LED light source and sensor, it has stable, durable, the characteristics of the economy. ✿The interface we design the menu type, because it is simple and easy to understand. Our JZ-300 is not only widely used on Quality department about the color difference, but also used on the school teaching, scientific research, color design. Application: ✿1.Injection colors matched and quality control in production process.✿2.Color-difference detection and color-difference control or printing process. ✿3. The color-difference analysis of spray paint and electroplate surface. ✿4.Color-difference of different area of the metal treating surface. ✿5.Color quality inspection of batch products outdoors On-line monitoring of color difference in production process. Specification: ✿Lighting/light system:45/0 ✿Measuringaperture:Ø8mm ✿Display model:L*a*b*、L*C*H*、∆E*ab、∆（L*a*b*）、∆（L*C*H*） ✿Operating language:Simplified Chinese or English ✿Measurement model:Single model, Average model ✿Observe illuminant:D65 ✿Standard illuminant:10° ✿Repeatability:Within △E*ab:0.1 standard deviation ( When the white calibration plates is measured 30 times, and averaged) ✿Measurement spaceing:About 2 seconds ✿Power source:4 AA-size battery or AC adapter ✿Operating temperature:0-40℃（32-104℉）；Relative humidity 85% or less ✿Size(WxHxD):110 ×60 ×190mm ✿Weight:310g(Without batteries）✿Standard Accessories:Plastic packing, protection cap, AC adapter, Software, USB cable, stainless steel box✿Optional accessories :Micro-printer

• (1) The color quality management software can analysis,exchange the color-difference and data
• (2)Practical of the average measurement mode, uneven surface also can measure
• (3) Automatically displays the bias degree of the color difference about sample and standard sample
• (4)Commonly used of two measurement modes: Lab&Lch, easy to switch measurement
• (5)Button & menu operation. Easy to understand. Reasonable price
