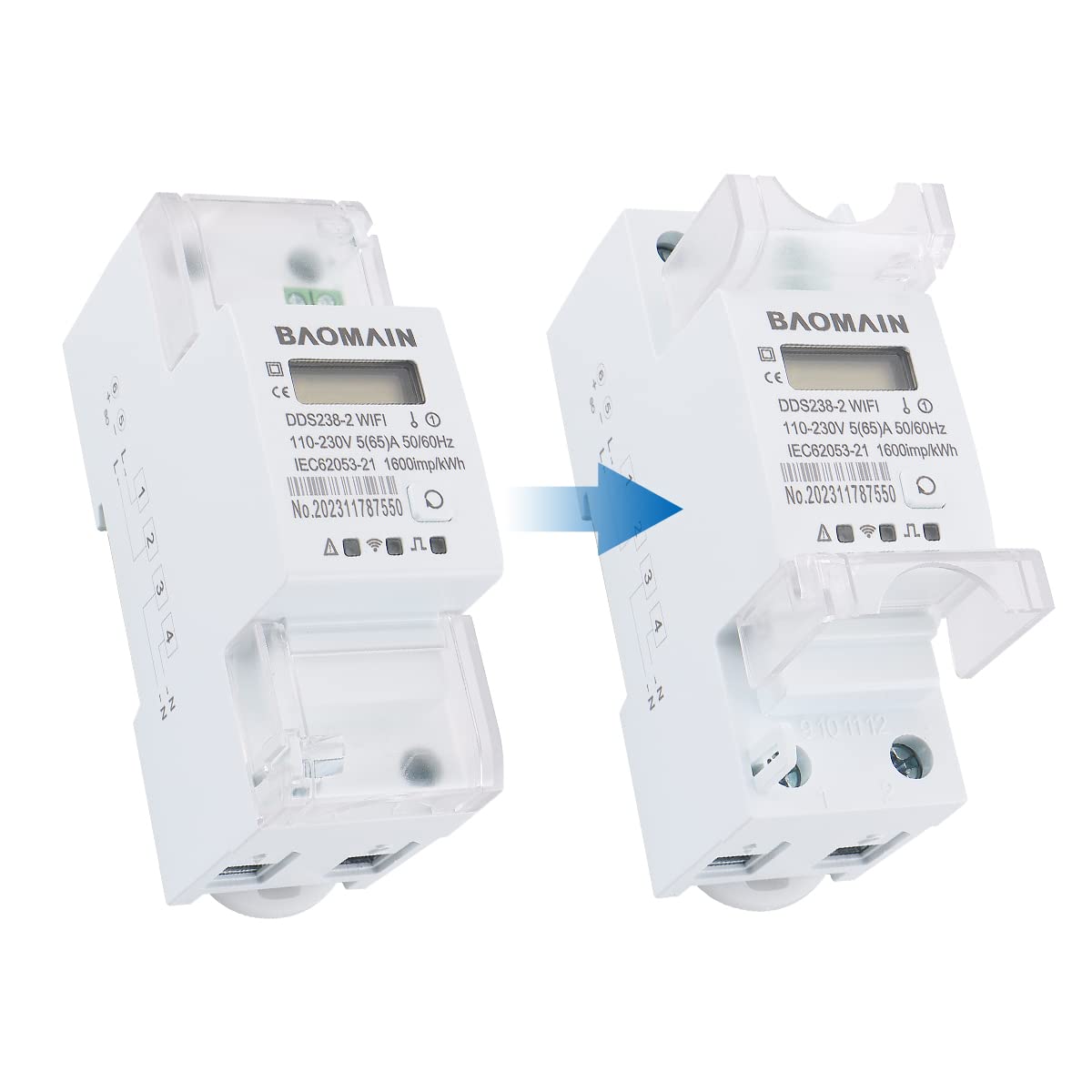

Baomain Single Phase Smart Energy Meter DDS238-2 WiFi 110-230 VAC 5(65) Amp 50/60 Hz, 1600imp/kWh
4.9 (83 items)
Limited Time SaleUS$19.07 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210251518 | Release Date | 2026/04/02 | List Price | US$12.72 | Model Number | 210251518 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
General Description The Single Phase Smart Meter has WIFI communication. It can use APP for remote reading and control on/off. Its data communication rules obey the requirement of WIFI 802.11b/g/n. It's a long life meter with the advantage of high stability, high over load capability, low power loss and small volume. Single phase type multi-function smart energy meter is designed to measure single phase 2 wire AC active energy and variable parameter. "SMART LIFE" Software Instruction Step 1: Please download the "SMART LIFE" software from Google play or App store.Step 2:Meter Input Power: When the meter power on,you can push the setting button last 5 Seconds,meter enter into the status of waiting for WIFI distribtion network and the WIFI Led will flash is interval.Its means meter enter into the status of waiting for WIFI distribution network.Step 3: Add Device: Please Check firstly that your telephone have connected the available WIFI network,Then click the "add device" button to go ahead .If device connect successfully ,you can relize remote control on/off,timer control and delay time control,and read the energy/current/voltage/active power and history energy,you also can change the device name and share the device to others.
- Rate frequency: 50 or 60Hz ;1600imp/kWh; Rated current: 5(65) A; kWh accuracy: Class 1
- Rate Voltage:120V/220V/230V/240V; Limits Voltage Range: 100~270V
- LCD: 999999.9 kWh; Current Circuit: <1.5VA; Voltage Circuit: <2W/8VA
- Operation Temperature: -25~70℃; Installation: 35mm DIN RAIL; IP Grade: IP20
- Wifi:802.11b/g/n,only support 2.4GHz network,not support for 5GHz network
| Color | White |
|---|---|
| Model | DDS238-2 |
| Brand Name | Baomain |
| Manufacturer | Baomain |
| Power Source | Corded Electric |
| Measurement Type | Electrical |
| Specification Met | CE |
| Included Components | User Manual |
| Upper Temperature Rating | 70 Degrees Celsius |
| Minimum Operating Voltage | 100 Volts |
