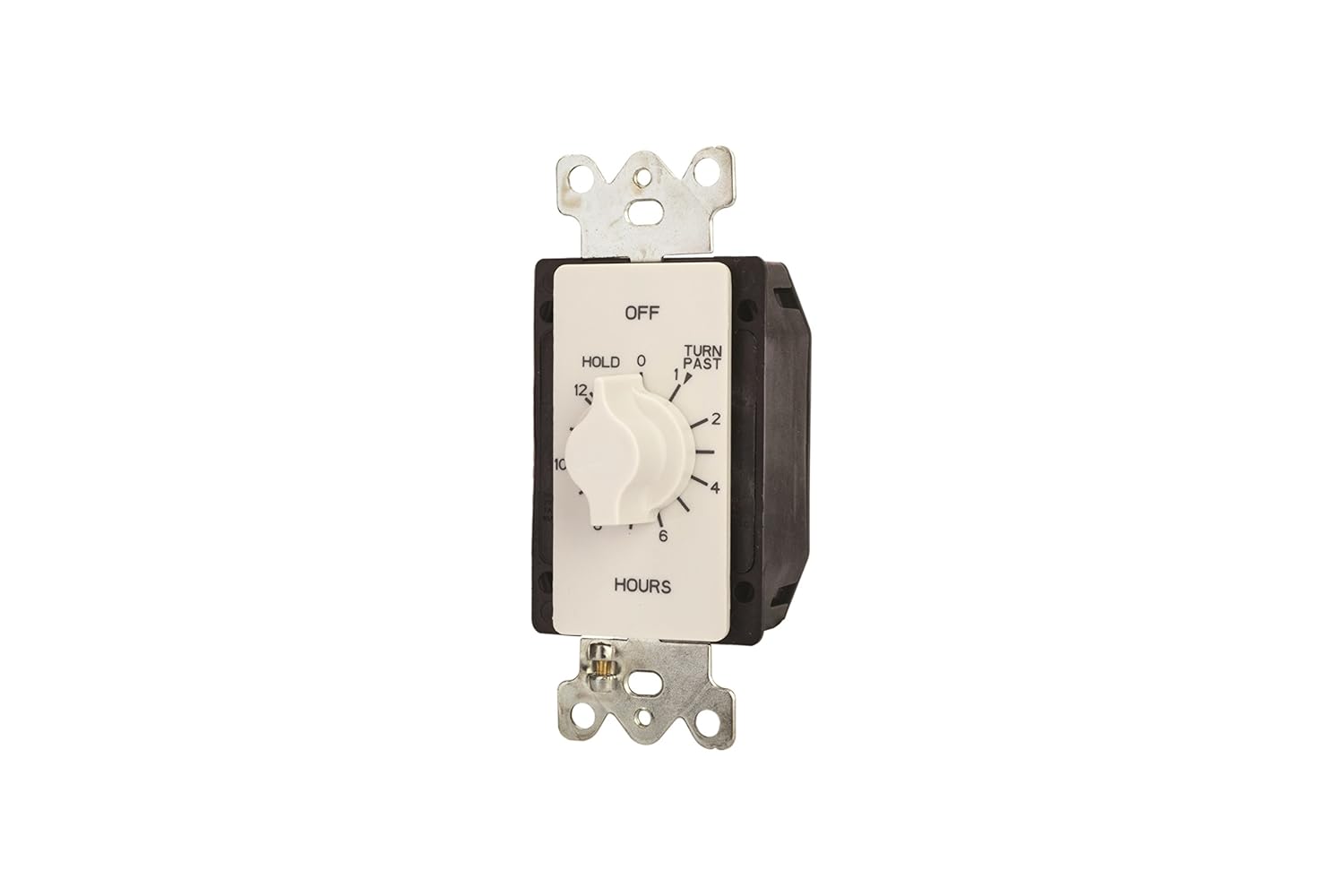

A Series Springwound Auto Off in-Wall Time Switch with Hold, 12 Hours Timer Length, White

This NSi Industries A512HHW spring-wound timed switch accepts 120/277 VAC input and its SPST output contacts can activate a 20 amp load or 2 hp motor. The timer's twist knob sets time from one minute to 12 hours and has a Hold position for constant On cycle. The single-pole single-throw (SPST) contacts are housed within a single-gang in-wall switch that is suitable for indoor use and is Underwriter Laboratories (UL) Listed and Canadian Standards Association (CSA) certified for quality assurance. This switch is suitable for controlling lighting and fans.SpecificationsSwitch typeSpring wound timer with twist knob and Hold positionInput power supply120/277 VAC, 50/60 HzOutput contactsSPST contacts, 20 amps load rating, 2 hp motor load ratingOn/off controlOne minute to 12 hours with auto Off and HoldEnclosureSingle-gang in-wall, white cover plate, indoor useTerminal wire size range#12 AWG (American wire gauge)Operating temperature range32 to +122 degrees F (0 to +50 degrees C)Standards metUL Listed, CSA certifiedAutomatic switches are used to turn on or off electrical devices and are activated by time, light, and motion. Time activated switches (also known as timers) operate at preset time intervals during a daily or weekly period and can be either mechanical or electronic. Mechanical timers feature a dial with multiple pins to set the on/off time intervals. Electronic timers feature an LCD display and pushbuttons to set the time intervals. Light activated switches (also known as optical or photo) operate when ambient light levels reach preset values, generally measured in foot candles. Motion-activated switches (also known as motion sensors) operate when an electronic field of a preset range is interrupted. These switches can include energy saving logic that uses combinations of time, light, and motion to operate and can include one or more device outlets or circuit contacts. Automatic switches are used to control indoor lights, outdoor lights, appliances, and small equipment motors.NSi Industries manufactures electrical components and sensors, lighting products, and energy management products. The company, founded in 1975, is headquartered in Huntersville, NC.

• Selectable timed On cycle for use with fans and lights
• Twist knob timed On settings from one minute to 12 hours, auto Off
• Hold position for constant On
• 120/277 VAC input voltage for multiple uses
• Single-gang in-wall enclosure for indoor use
