5/10Pcs HVFF Hand Control Stop Pneumatic Valve Quick Push Connector Air Water Compressor Pumb Hose Pipe Fitting 4mm 6mm 8mm 10mm(HVFF 4-4 O.D.4MM,10pcs)

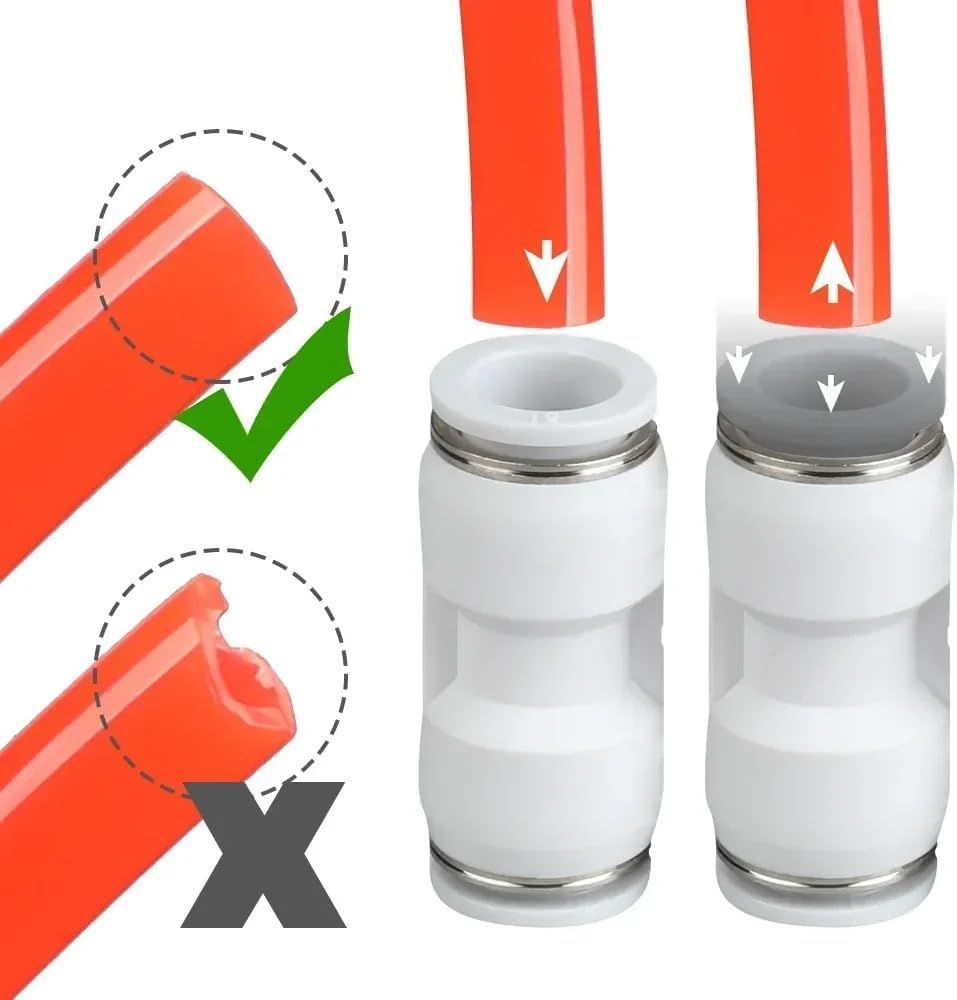

Item No.: SA / LSA / PAConnection Way: One-Touch Quick ConnectionType: Hose to HoseDesign: Speed AdiustingMaterial: Nitrile Rubber, Plastic , MetalFluid Type: Clean Air, Vacuum, No Toxic GasApplicable Tube: SolfNylon, PolyurethaneNormal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)Max.Operating Pressure: 15.0 bar(1.5MPa)Negative Pressure: -750mmhg (10Torr)Ambient And Fluid Temperature: 0~60 (140)Hose Size Options: 4-4mm, 6-6mm, 8-8mm, 10-10mm, 12-12mmGrasp the tubing and slowly push it into the fitting until it comes to stop. The tubing will be locked by the spring gasket.Remove1. Cleaning: Clean the piping before connection to remove debris.2. Tubing Cut: Ensure a perpendicular cut without scratches on the tubing's outer diameter.3. Pipe Length: Avoid excessive bending; select a proper pipe length.4. Connection: After connecting, pull the tubing gently to check its seal.5. Release: Push evenly on the release button flange for proper tubing withdrawal.6. Removal: Avoid rotating the tubing fully during removal.7. Assembly: Ensure no debris enters when screwing pipes and fittings together.Safety Instructions:1. Pressure: Ensure zero pressure in the tubing before removal.2. Spatter Zones: Avoid standard fittings in spatter-producing areas.3. Monitor Conditions: Stay within specified pressure and temperature ranges.4. Environment: Avoid corrosive gases, chemicals, and extreme conditions.5. Placement: Avoid areas with heavy vibrations or shocks.6. Direction: Install tubing in the correct one-way direction.

• Fluid Type: Clean Air, Vacuum, No Toxic Gas
• Applicable Tube: SolfNylon, Polyurethane
• Normal Operating Pressure: 0~10kgf/cm² (0~1.0MPa / 0~1.0bar)
• Max.Operating Pressure: 15.0 bar(1.5MPa)
• Negative Pressure: -750mmhg (10Torr)
• Ambient And Fluid Temperature: 0~60 (140)
• Hose Size Options: 4-4mm, 6-6mm, 8-8mm, 10-10mm, 12-12mm
