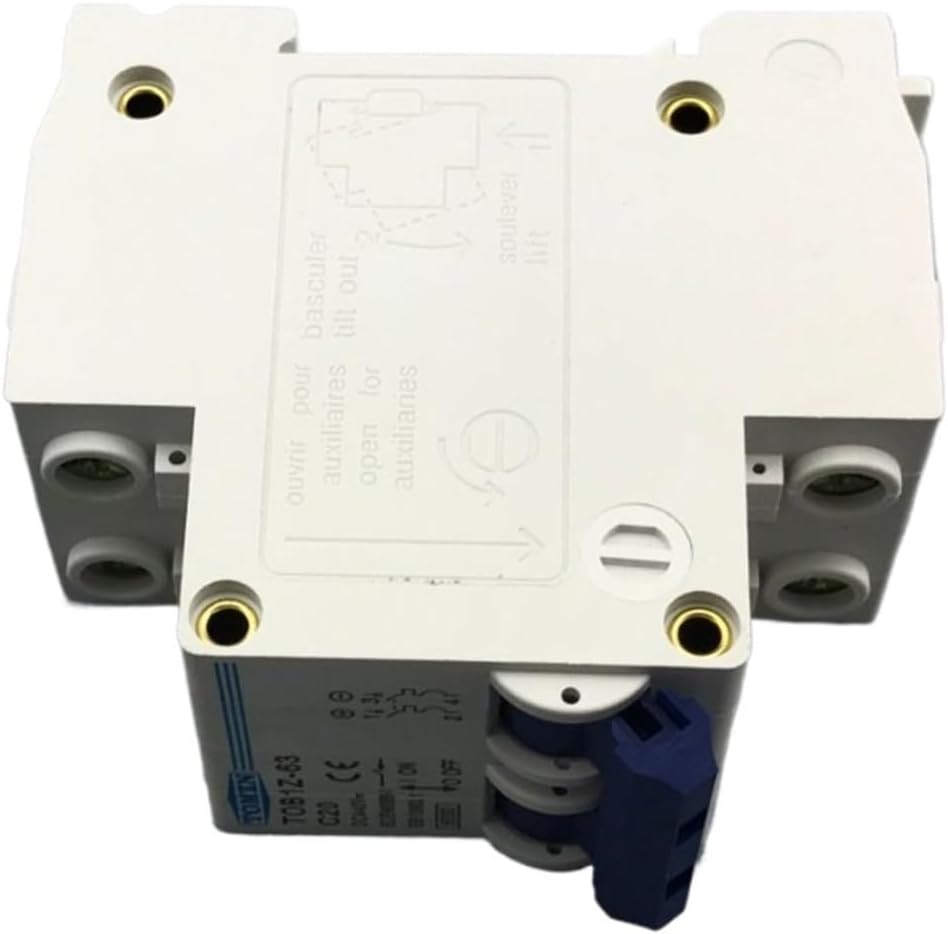

2P 20A DC 440V Direct Current Circuit Breaker MCB

Circuit BreakersApplicationTOBIZ-63 Series DC Miniature Circuit Breaker, apply to rating current 63A or less, Direct current rating voltage 220Vand 440V. It is mainly used for the overloading and short circuit protection in DC distribution system Equipment andelectric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields. Inpresent , our products in the case grade rating voltage is highest compared to the same products. Productsaccording IEC60898-1, GB14048.2 standard.CharacteristicTOBIZ-63 DC circuit breaker is made up of case, operation mechanism, thermal overloading trip, electromagnetic tripcontact system, arc system etc. It has overloading and short circuit protection, unique-design structure and strongpermanent magnetism arc system make the product has 6KA short circuit capability. Long mechanical life over 20000times and beautiful shape. It can be connected with din rail named TH35-7.5 standard stainless type and has the belowpersonality: the handle is designed on the top of the front, people will feel safe and comfortable when operating. Whenconnecting, pay attention to "+, -" poles; The power goes in from the top and comes out from the underside which isapplied with power entrance character. Convenient for installation and saving cables. It is used for 440V circuit 3 polescircuit breaker to connect front loop for two poles serial connection.B Curve (3-5In) protection for people and big length cables in TN and IT systemsC Curve (5-10In) protection for resistive and inductive loads with low inrush current.D Curve (10-14In) protection for circuits which supply loads with high inrush current at the circuit closing (LV/LV , breakdown lamps)
